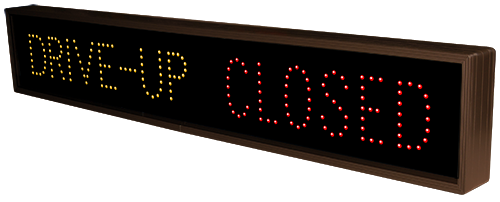

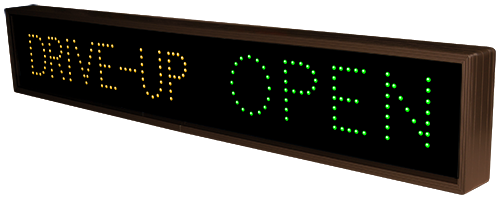

12954 (TCL742AGR-B708) DRIVE-UP | OPEN | CLOSED LED Sign

DRIVE-UP | OPEN | CLOSED
click to view larger

View larger    Watch Video
View more/larger photos by clicking on the image.
360° Sign View
To rotate sign, click and drag left or right.
Add To CartView Spec Sheet Request A Quote
Share this product on your favorite social sites!

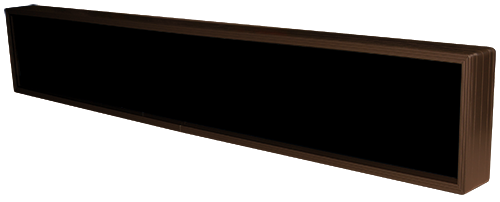

This TCL Series DRIVE-UP | OPEN | CLOSED outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations. Manufactured in the USA.

Estimated to ship on 10/04/2016 if ordered today before 5pm ET.

Product #:

12954

Product Line:

TCL (Outdoor Blank-out LED Direct-view Sign)

Model:

TCL742AGR-B708

Dimensions:

7" H x 42" W x 2.5

Weight:

10.365 lbs.

Faces:

Single Face

Face Material:

1/8" Smoked Polycarbonate(5109)

Illumination:

TCL LED

LED Viewing Angle:

Wide Angle LEDs

Cabinet:

TCL 2.5"

Input Voltage:

120-277 VAC

UL/cUL Listed:

Wet Locations

Finish:

Duranodic Bronze

Flashing:

Not Included

Warranty:

5 Year Warranty

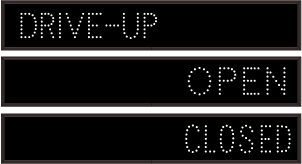

Message DisplayMessages Message Color Character Height

Open | Closed - 25883

DRIVE-UP

Amber Wide Angle

3.25"

OPEN

Green Wide Angle

3.5"

CLOSED

Red Wide Angle

3.5"

5 Year Warranty

Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
To learn more about our warranty, click here.
