Surface Sign Brackets and Frames

While our signs come with a standard wall mount, in which the back of the sign can be bolted directly to a surface, specific applications may require specialized surface mounting either by recessing the sign into the wall, projecting the sign out from the wall or angling the sign to creating a specific viewing angle. All of our surface mounting brackets are constructed of heavy gauge aluminum, our brackets are non-corrosive and durable to withstand any weather conditions; fasteners are not included. Painted duranodic bronze, custom color matching is available by request.

For signs to be recessed into a wall, we offer aluminum recessed frames that fasten over the sign giving it a clean framed finish by hiding any gaps between the sign and the wall. Compatible with all of our signs.

Side mounting brackets are available to project a sign up to 26" wide at a 90 degree from the wall. For larger signs, use posts. Dual angle mounting brackets, constructed of 1/8" thick extruded aluminum, can be bolted to any wall surface allowing the sign to be mounted at either a 30 or 40 degree angle. Lengths are available from 4" to 42", allowing for a secure display of signs up to 42 inches long.

Swivel wall mounts consist of two brackets, the outer bracket bolts to the wall surface, while the sign is attached to the inner bracket. The bracket swivels on a unique arc-shaped axis, allowing the sign to be adjusted in either direction, up to 45 degrees. The swivel mount is ideal when mounting signs on the pitch of a roof or for traffic approaching a sign from different or odd angles. It also creates more options and possibilities to mount signs in other locations for easy readability. Standard sizes include 7"H x 18"L and 7"H x 34"L, custom sizes available up to 14"H x 42"L are available upon request.

Recessed Frame Mount for use on 7" x 18" LED and Neon Signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 3014 (RF718)
Dimensions: 10" H x 21" W x 2" D

Recessed Frame Mount for use on 7" x 34" LED and Neon signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 3018 (RF734)
Dimensions: 10" H x 37" W x 2" D

Extruded Aluminum Side Mount Bracket for use on 7" highs
Order Today, Ships Today (order before 5pm ET)
Product ID: 3061 (SM7-SF)
Dimensions: 6" H x 4" W x 2" D

Recessed Frame Mount for use on 14" x 18" LED and Neon signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 2999 (RF1418)
Dimensions: 21" H x 17" W x 2" D

Side Mount for use on TCI and TCIL
Order Today, Ships Today (order before 5pm ET)
Product ID: 3062 (SMI)
Dimensions: 4" H x 4" W x 2" D

Dual Angle bracket for use on 7" x 18" signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 1796 (DAM718-30/45)
Dimensions: 9" H x 18" W x 9" D

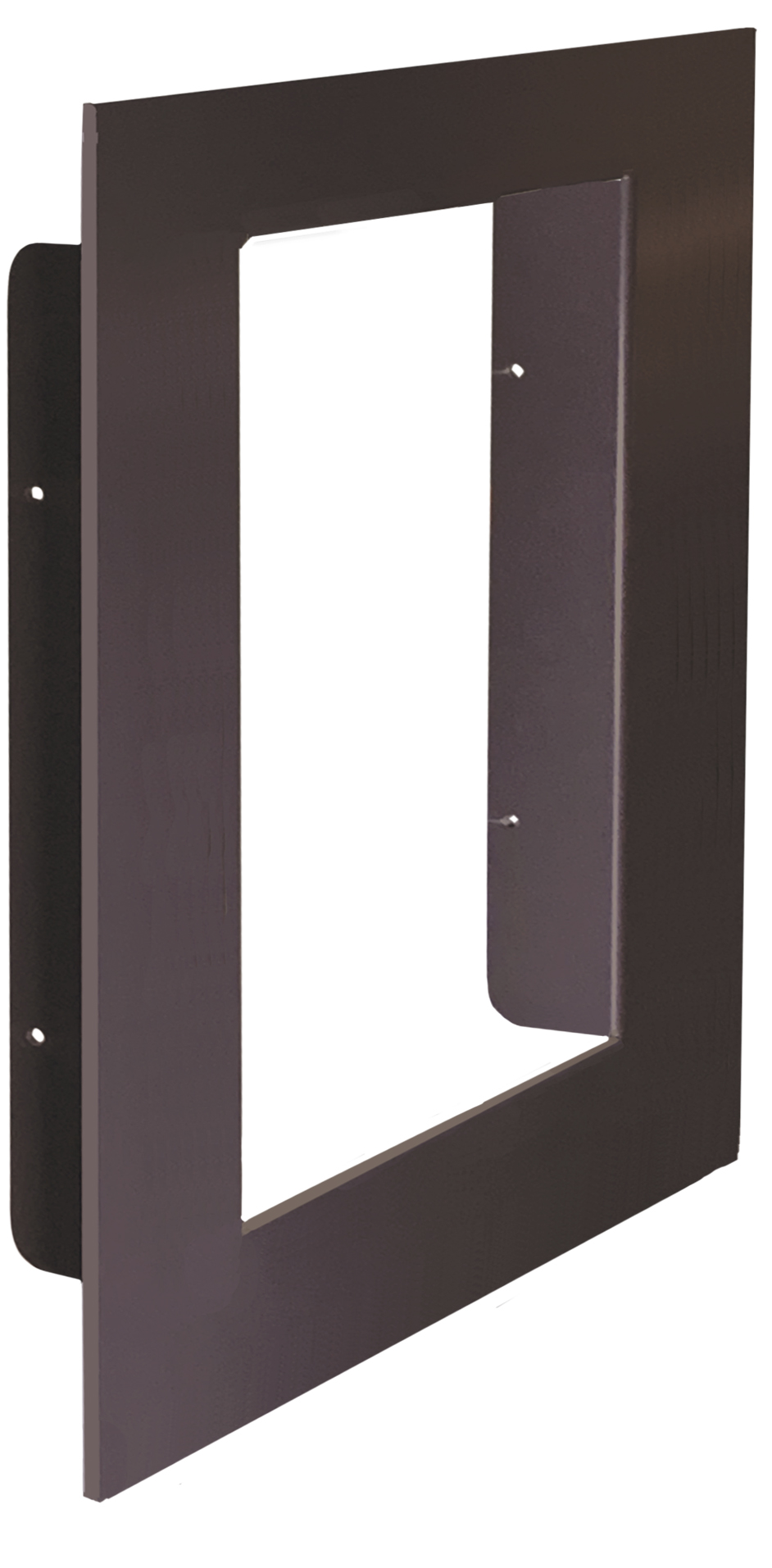

Recessed Frame Mount for use on 12" x 12" LED and Neon signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 2997 (RF1212)
Dimensions: 15" H x 15" W x 2" D

Dual Angle bracket for use on 18" x 18" signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 1795 (DAM1818-30/45)
Dimensions: 17.75" H x 18" W x 9" D

Double Face Side Mount Brackets
Product ID: 7396 (DFSM)
Dimensions: 4" H x 5.25" W x 2" D

Recessed Frame Mount for use on 10" x 26" LED and Neon signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 2996 (RF1026)
Dimensions: 13" H x 29" W x 2" D

Recessed Frame Mount for use on 7" x 7" LED and Neon signs
Product ID: 3022 (RF77)
Dimensions: 10" H x 10" W x 2" D

TCI and TCIL Recessed Frame Mount
Order Today, Ships Today (order before 5pm ET)
Product ID: 3025 (RFI)
Dimensions: 17" H x 10" W x 0.125" D

Dual Angle bracket for use on 14" x 18" signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 1793 (DAM1418-30/45)
Dimensions: 13.75" H x 18" W x 9" D

Dual Angle bracket for use on 7" x 34" signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 1798 (DAM734-30/45)
Dimensions: 6.75" H x 34" W x 15" D

Extruded Aluminum Side Mount for 12" High Signs
Product ID: 3048 (SM12-SF)
Dimensions: 11" H x 4" W x 2" D

Extruded Aluminum Side Mount for use on 34" high signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 3058 (SM34-SF)
Dimensions: 33" H x 4" W x 2" D

Dual Angle bracket for use on horizontal TCI and TCIL Units
Order Today, Ships Today (order before 5pm ET)
Product ID: 1800 (DAMIH-30/45)
Dimensions: 4" H x 10" W x 6.75" D

Extruded Aluminum Side Mount for use on 14" high signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 3051 (SM14-SF)
Dimensions: 13" H x 4" W x 2" D

Swivel Bracket Assembly
Product ID: 20594 (SWM718)
Dimensions: 7" H x 18" W x 3.5" D

Recessed Frame Mount for use on 7" x 42" LED and Neon signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 3021 (RF742)
Dimensions: 10" H x 45" W x 2" D

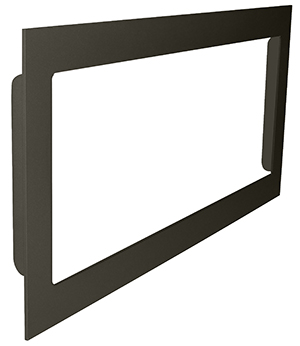

Recessed Frame Mount for use on 14" x 34" LED and Neon signs
Product ID: 3003 (RF1434)
Dimensions: 37" H x 17" W x 2" D

Recessed Frame Mount for use on 12" x 14" LED and Neon signs
Product ID: 18247 (RF1214)
Dimensions: 15" H x 17" W x 2" D

Recessed Frame Mount for use on 18" x 18" LED and Neon signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 3005 (RF1818)
Dimensions: 21" H x 21" W x 2" D

Extruded Aluminum Side Mount for use on 42" high signs
Product ID: 3059 (SM42-SF)
Dimensions: 41" H x 4" W x 2" D

Dual Angle bracket for use on 10" x 26" signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 1790 (DAM1026-30/45)
Dimensions: 9.75" H x 26" W x 12" D

Dual Angle bracket for use on 12" x 12" signs
Order Today, Ships Today (order before 5pm ET)
Product ID: 1791 (DAM1212-30/45)
Dimensions: 11.75" H x 12" W x 7" D

Recessed Frame Mount for use on 14" x 26" LED and Neon signs
Product ID: 3002 (RF1426)
Dimensions: 17" H x 29" W x 2" D

Recessed Frame Mount for use on 14" x 42" LED and Neon signs
Product ID: 3004 (RF1442)
Dimensions: 17" H x 45" W x 2" D

Recessed Frame Mount for use on 7" x 26" LED and Neon signs
Product ID: 3016 (RF726)
Dimensions: 10" H x 29" W x 2" D

Extruded Aluminum Side Mount Bracket for use on 18" highs
Product ID: 3052 (SM18-SF)
Dimensions: 17" H x 4" W x 2" D
