Wholesale Manufacturer of Directional LED Signs & Signals

49219 (TCL1010DRGRG-175TS/120-277VAC) X | Down Arrow | X | Down Arrow (120-277 VAC) LED Sign

Estimated to ship in 5 days.
Lead times subject to change based on quantity.
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
Product #: 49219 Product Line: TCL (Outdoor Blank-out LED Direct-view Sign)
Model: TCL1010DRGRG-175TS/120-277VAC Dimensions: 10" H x 10" W x 5.5" D
Weight: 6.203 lbs. Faces:Double Face
Face Material:1/8" Smoked Polycarbonate(5109)Illumination:TCL LED
LED Viewing Angle:Wide Angle LEDsCabinet:TCL 550 5.5"
Input Voltage:120-277 VACUL/cUL Listed:Wet Locations
Finish:Duranodic BronzeMounting Channel:None
Flashing:Not Included Warranty: 5 Year Warranty

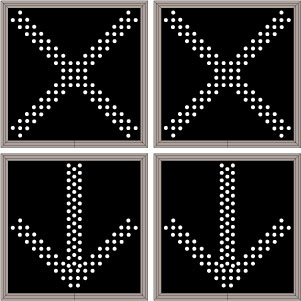

Message Display Messages Message Color Character Height

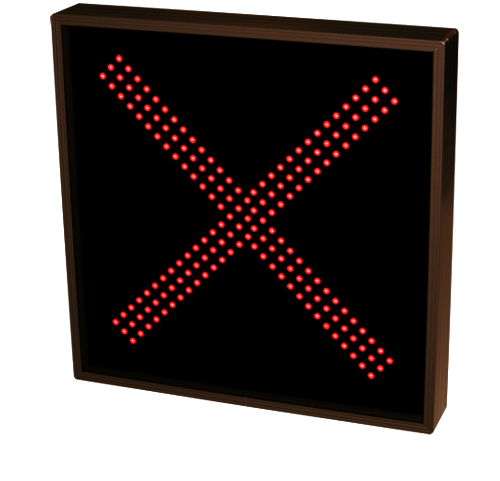

X ImageX Red Wide Angle LED 8.375"

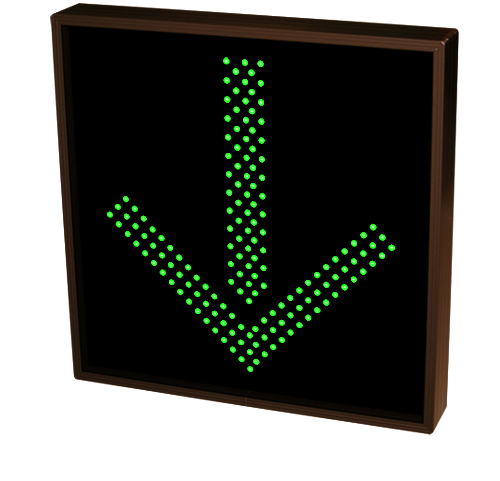

Down Arrow Green Wide Angle LED 8.125"
X Red Wide Angle LED 8.375"
Down Arrow Green Wide Angle LED 8.125"

Please contact us for mounting recommendations.

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.


Product Description

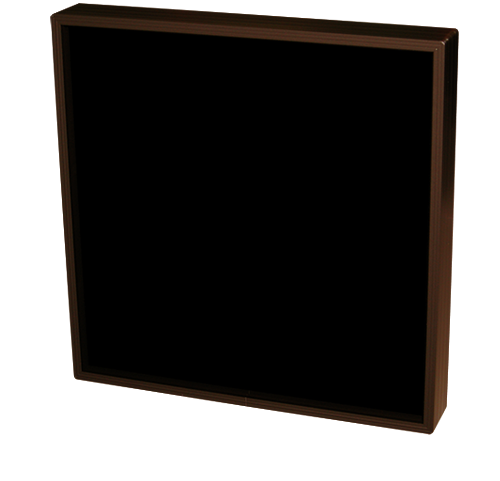

This TCL Series X | Down Arrow | X | Down Arrow (120-277VAC) outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
