68331 (DOT2929RG-175/100-240VAC) X | Down Arrow (100-240 VAC) LED Sign

Signal-Tech 68331 DOT2929RG-175/100-240VAC X | Down Arrow (100-240 VAC)

Signal-Tech X | Down Arrow (100-240 VAC) - 68331 Product Message

Add To Cart Request A Quote View Spec Sheet

Product #:	68331	Product Line:	NUDOT (DOT LED Blank-Out Sign)
Model:	DOT2929RG-175/100-240VAC	Dimensions:	29" H x 29" W x 6.5" D
Weight:	58.414 lbs.	Faces:	Single Face
Face Material:	1/8" Smoked Impact Modified Acrylic (5109)	Illumination:	TCL LED
LED Viewing Angle:	Narrow Angle LEDs	UL/cUL Listed:	Wet Locations
Finish:	Powdercoat Black	Power Supplies:	No Redundancy
Cabinet:	NuDOT Single Face 6.5"	Photodimming:	Single Photodimming
Input Voltage:	100-240 VAC	Warranty:	5 Year Warranty

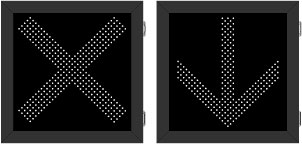

Message Display	Messages	Message Color	Character Height

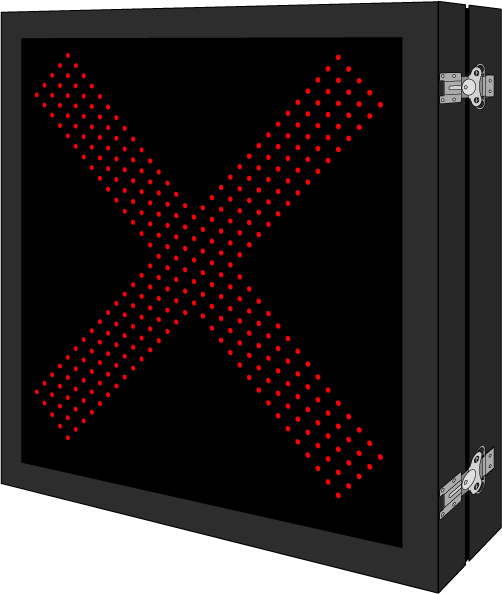

	X	Red Narrow Angle LED	21.0"

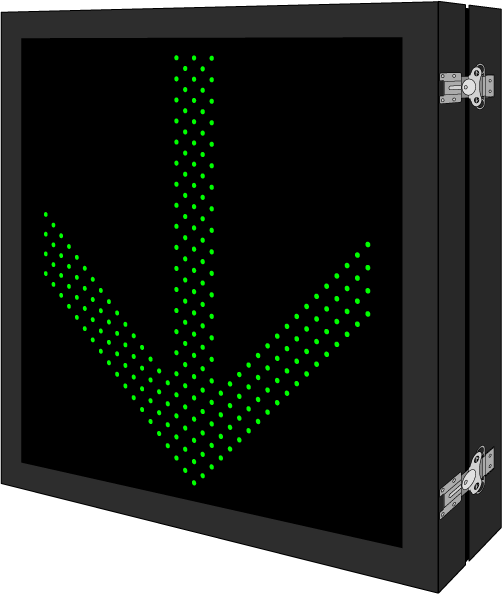

	Down Arrow	Green Narrow Angle LED	21.0"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product Description

This DOT Series X | Down Arrow sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 29.000" x 29.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
