Wholesale Manufacturer of Directional LED Signs & Signals

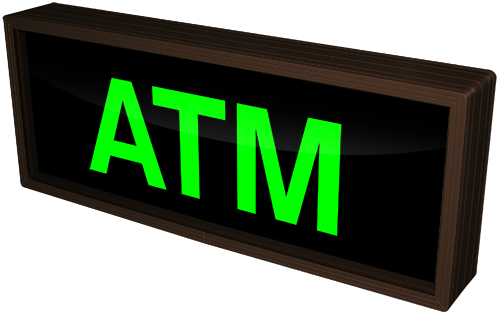

51939 (PHX718G-125/12-24VDC) ATM (12-24 VDC) LED Sign

  • Signal-Tech 51939 PHX718G-125/12-24VDC ATM (12-24 VDC)
  • Signal-Tech 51939 PHX718G-125/12-24VDC ATM (12-24 VDC) Product Message 1
  • PHX Video Image
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
  • Item Details
  • Messages
  • Installation & Wiring
  • Switches & Mounting
  • Warranty
Product #: 51939 Product Line: PHX (Outdoor Blank-out LED Backlit Sign)
Model: PHX718G-125/12-24VDC Dimensions: 7" H x 18" W x 2.25" D
Weight: 3.972 lbs. Faces:Single Face
Graphic:PrintedColor:Black Blockout
LED Viewing Angle:Wide Angle LEDsFace Material:1/8" Dark Grey Diffused Acrylic
UL/cUL Listed:Wet LocationsFinish:Duranodic Bronze
Illumination:PHX LEDMounting Channel:None
Cabinet:PHX 2.25"Flashing:Not Included
Input Voltage:12-24 VDC Warranty: 5 Year Warranty
Message DisplayMessages Message Color Character Height

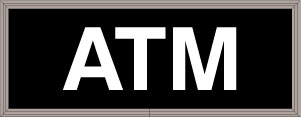

Open | Closed - 25883ATM Green Wide Angle LED 3.75"
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

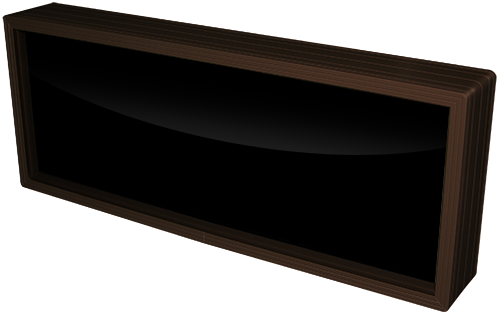

This PHX Series ATM (12-24VDC) outdoor, blankout sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations. Manufactured in the USA.
