VMS Series Smart Sign Rebel Display

Signal-Tech vms_series_smart_sign_rebel_display image
ParkingEntrance and ExitFee Display and CashierWarning and SafetyRedStorm Parking Guidance SystemRedStorm Sign Control and Reporting SoftwareSpace Available and End of AisleParking Smart SignsVMS Series Smart Sign Rebel DisplayOver Height Clearance Bars

The VMS Series Smart Sign Rebel™ Display is an outdoor LED programmable parking display sign. It's ideal for displaying changeable parking rates, special event messaging and directional parking instructions. The VMS Smart Sign Rebel gives you the flexibility to pre-program fixed messages or schedule an unlimited number of messages.

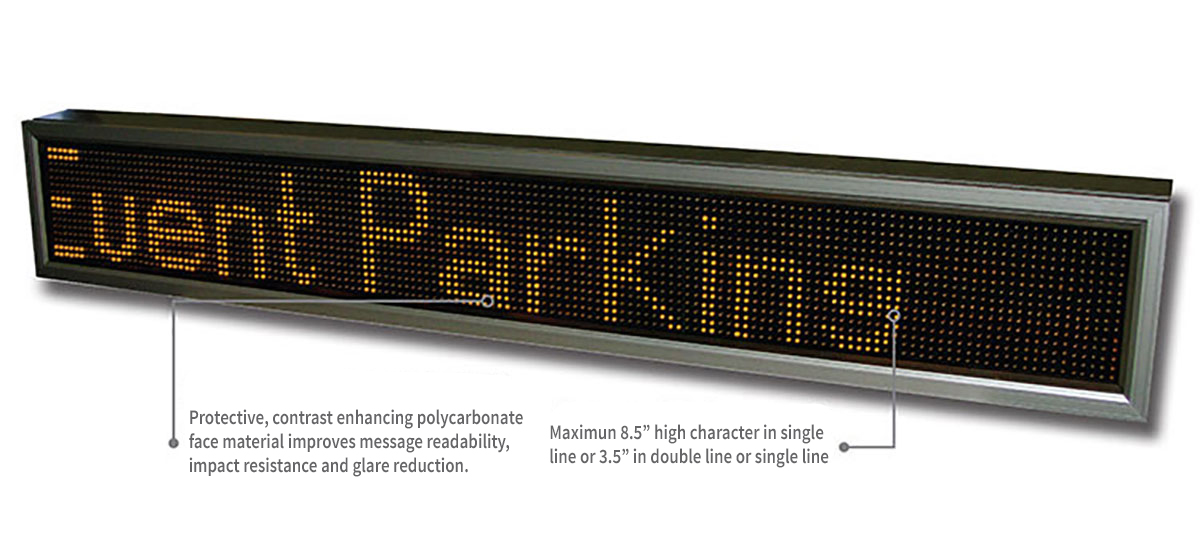

The VMS Smart Sign Rebel Display is engineered for outdoor use and features an extruded aluminum, hinged-faced cabinet and contrast-enhancing polycarbonate face to reduce glare and enhance message readability. All message displays are conformal coated to protect the electronics from the environment.

Request A Quote
Request A Quote
Click here to request a quote.

Product Features

  • Engineered for outdoor use
  • A 3 ½ " and 8 ½ " high preloaded character set plus a library of symbols and arrows

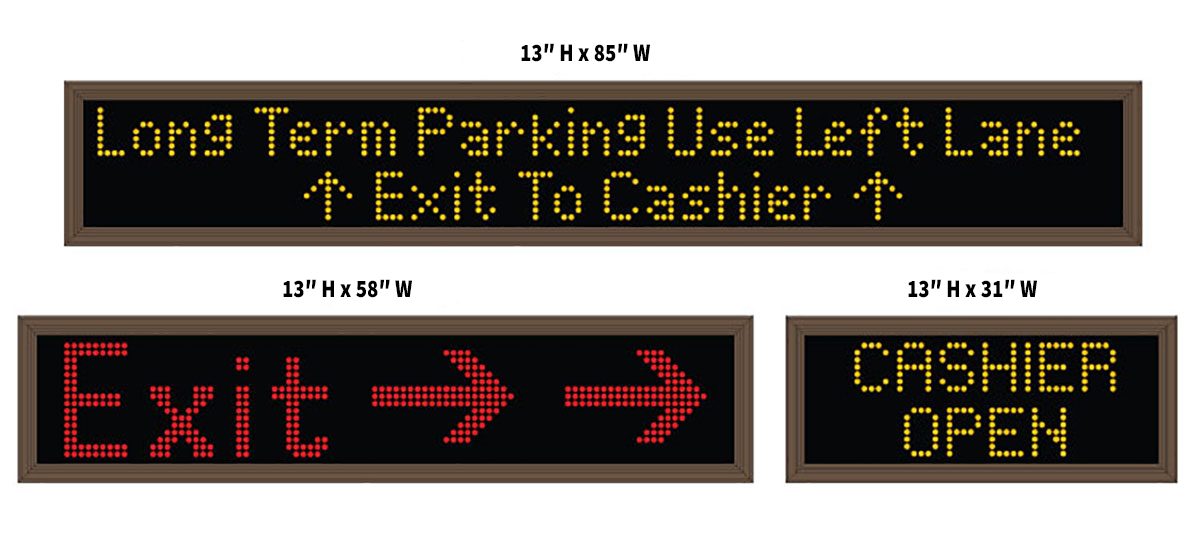

  • Three cabinet sizes:
    • 13" h x 31"w
    • 13" h x 58"w
    • 13" h x 85"w
  • Available as a single or double-sided sign, 5.5" and 7.5" deep respectively
  • Available in two monochrome LED colors: Red or Amber

Product Functionality

  • Offers quick and easy message creation and message scheduling from a PC
  • Supports message scrolling, paging and blinking transitions
  • Software controlled, Ethernet communications
  • UL/cUL Listed for wet locations

Programming your VMS Series Smart Sign Rebel Display

Signal-Tech's Sign Control Software is used to program and schedule the VMS Rebel Smart Sign Series Display. The Software includes an Administrative Tool (Admin Tool) for creating messages, setting up the message schedule or playlist and authorizing Web Interface users to monitor and override scheduled messages remotely.

Messages are created through the software's Admin Tool using a pre-loaded character set and library of arrows and symbols. Date and Time can also be displayed in multiple formats.

To simplify the scheduling process, messages are scheduled for a one week period. This weekly schedule loops until permanently altered, interrupted with a temporary adjustment such as a holiday schedule or temporarily overridden through the Web Interface.

Learn More Button
Learn More
about smart signs & sign control software.
 Product Specifications
View Specs
Click here to view product specs.
Cabinet Size
13" h x 31"w x 5.5"d 13" h x 58"w x 5.5"d 13" h x 85"w x 5.5"d
Product ID # (single-faced)
40386 (Amber)
39909 (Red)		 40384 (Amber)
40360 (Red)		 40075 (Amber)
40383 (Red)
Character Height*
3.5" 8.5"
3.5" 8.5"
3.5" 8.5"
# of Lines/Rows
One Two One
One Two One
One Two One
Characters Per Line (before scrolling)
8 8 4
16 16 8
24 24 12
Viewing Distance (Est)
200 ft 200 ft 400 ft
200 ft 200 ft 400 ft
200 ft 200 ft 400 ft
Input Voltage 100-240VAC
Amps @ 120VAC
0.332-0.138 0.504-0.210 0.996-0.415
UL/cUL Listing UL/cUL Listed for wet locations
Display Size (in pixels hxw)
16x48 Pixels 16x96 Pixels 16x144 Pixels
Pixel Pitch 14mm
Temperature and Humidity Ratings The Cabinet and sign components shall operate in the following temperature and humidity conditions:
  • Operational & storage temperature range: -40°F to +165°F
  • Humidity range: 0% to 99% (non-condensing)
Warranty 1 Year
Communications Ethernet
Control Method Signal-Tech Sign Control Software
Cabinet Construction and Finish 1/8” extruded aluminum frame with hinged front and polycarbonate face. Standard finish is painted Duranodic Bronze, custom colors available upon request.
Mounting Wall, ceiling and double posting mounting options available



Visibility

  • 3 ½"H and 8 ½" H characters viewable from 200 ft and 400 ft, respectively
  • Wide-angle LEDs ensures off-center viewing
  • Super bright LEDs ensure readability in direct sunlight
  • Contrast enhancing polycarbonate face reduces glare and enhances message readability

Protection and Maintenance

  • Durable corrosion-resistant aluminum cabinet
  • Conformal coating protects electronics components from outside elements including dust
  • Hinged cabinet face supports easy installation and maintenance
  • UL/cUL Listed for wet locations

Sign Control Software

  • Ethernet communications
  • Compatible with Windows® 7 or higher
  • Uses a looping weekly playlist for easy scheduling
  • Includes a password protected web interface that offers live access for monitoring sign status and the ability to temporarily override the message schedule

System Requirements

VMS Series Smart Sign Rebel Display

  • 110-240VAC input power connection at each Smart Sign
  • A wired Ethernet network connection at each sign
  • Static IP lease on a DHCP enabled network

Computer Requirements for Sign Control Software

  • Server grade PC with power backup running Windows 7 or Windows Server 2008 or higher.
  • Minimum requirements: 8GB RAM and 128 GB of hard drive space
  • Network requirements: Ethernet, DHCP enabled
