RGB Rebel Series

It's sleek, easy to set up, and simple to operate. These programmable message signs are ideal for communicating with pedestrians and vehicles moving at slow to moderate speeds. This sign series is capable of displaying full-color graphics, including logos and symbols.

The Signal-Tech Sign Control Software operates these signs; therefore, they can be controlled remotely from a central location. Set up a schedule or change the message with ease through a simple button click. The RGB Rebel Matrix Display is perfect for any application because it pairs function with beauty as it boasts easy-to-use software and a sleek, easy-to install sign. Learn about Sign Control Software RGB Setup.

Download Brochure

Download our RBG Brochure.

View RGB Messages

See example RGB Sign Messages.

Product Features

• Hinged face for easy installation
• RGB Matrix signs can be programmed to display any message, including images in full color
• Software changes the message or blanks the sign automatically, based on schedules or RedStorm capacity data
• Provides an easy message editor with a live preview
• Supports date and time message
• Supports scrolling text
• Can display specific zone counts when used with a RedStorm^™ System
• Open API for integration with 3rd-party systems

Product Functionality

• Offers quick and easy message creation and message scheduling from a PC
• Supports message transitions to allow for message animation
• Software controlled, Ethernet communications
• UL/cUL Listed for wet locations
• Wide-angle LEDs for wider viewing angles

Programming your RGB Rebel Series Smart Sign Display

Signal-Tech's Sign Control Software is used to program and schedule the RGB Rebel Series Display. The Software includes an Administrative Tool (Admin Tool) for creating messages, setting up the message schedule or playlist and authorizing users to monitor and override scheduled messages remotely using the web interface.

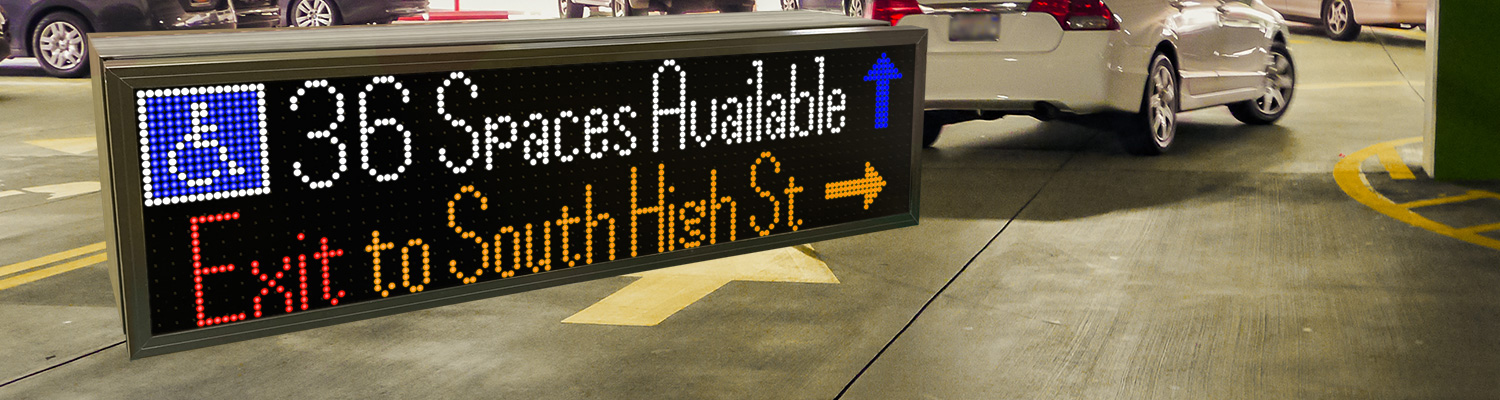

Messages are created through the software's Admin Tool using a preloaded font, symbol and message library. Date and Time can also be displayed in multiple formats. When combined with a RedStorm Parking Guidance System, space available counts can also be displayed, RedStorm also allows for sign messages to change conditionally based on count data.

To simplify the scheduling process, messages are scheduled for a one week period. This weekly schedule loops indefinitely until interrupted with a holiday schedule or temporarily overridden through the Web Interface.

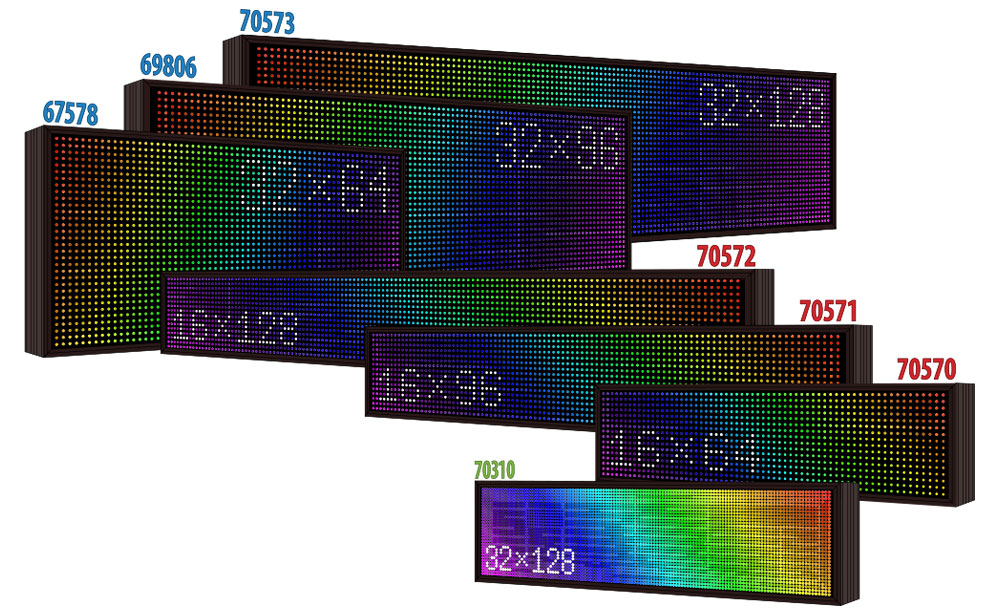

Available Display Sizes

• Product #

  Display

  Character Height Using the included pixel perfect fonts and symbol library (Inches)

  Amps @ 120 VAC

  Power (Watts)

  Cabinet Dimensions

  Weight (lbs.)

• 60356

  16 x 48 Pixel Display High Intensity 11mm Pixel Pitch

  3" LED Small 6.5" LED Large 13.4" LED Extra Large

  0.88A

  105

  8.25"h x 22.25"w x 6"d

  23lbs.

• 60372

  16 x 64 Pixel Display High Intensity 11mm Pixel Pitch

  3" LED Small 6.5" LED Large 13.4" LED Extra Large

  1.18A

  142

  8.25"h x 29.25"w x 6"d

  26lbs.

• 60371

  16 x 96 Pixel Display High Intensity 11mm Pixel Pitch

  3" LED Small 6.5" LED Large 13.4" LED Extra Large

  1.76A

  210

  8.25"h x 43.25"w x 6"d

  38lbs.

• 60376

  16 x 128 Pixel Display High Intensity 11mm Pixel Pitch

  3" LED Small 6.5" LED Large 13.4" LED Extra Large

  2.35A

  282

  8.25"h x 57.25"w x 6"d

  48lbs.

• Product #

  Display

  Character Height Using the included pixel perfect fonts and symbol library (Inches)

  Amps @ 120 VAC

  Power (Watts)

  Cabinet Dimensions

  Weight (lbs.)

• 59334

  32 x 128 Pixel Display Standard Intensity 5.5mm Pixel Pitch

  1.5" LED Small 3.25" LED Large 6.7" LED Extra Large

  0.67A

  80

  8.25"h x 29.25"w x 6"d

  31lbs

• 60375

  32 x 64 Pixel Display High Intensity 11mm Pixel Pitch

  3" LED Small 6.5" LED Large 13.4" LED Extra Large

  2.35A

  282

  15.25"h x 29.25"w x 6"d

  40lbs.

• 60355

  32 x 96 Pixel Display High Intensity 11mm Pixel Pitch

  3" LED Small 6.5" LED Large 13.4" LED Extra Large

  3.53A

  424

  15.25"h x 43.25"w x 6"d

  65lbs.

• 60373

  32 x 128 Pixel Display High Intensity 11mm Pixel Pitch

  3" LED Small 6.5" LED Large 13.4" LED Extra Large

  4.71A

  565

  15.25"h x 57.25"w x 6"d

  70lbs.

Specifications (11mm & 5.5mm)

RGB 11mm Pixel Pitch

Pixel Configuration (High Intensity):

1 Red, 1 Green, 1 Blue for standard resolution

Pixel Pitch:

11mm (center-to-center)

RGB 5.5mm Pixel Pitch

Pixel Configuration (Standard Intensity):

3 in 1 - Red/Green/Blue Fusion for high resolution

Pixel Pitch:

5.5mm (center-to-center)

Shared Specs

Estimated LED Lifetime:	100,000+ hours	Color Capability:	65,000 colors (16-bit)
Viewing Angle:	Wide	Service Access:	Front access
Graphic Capability:	Text, Graphic symbols, Logos, Basic Animation	Graphic Accessibility:	Built in library with hand-crafted pixel perfect fonts and symbols for ultimate resolution
Control Software:	Signal-Tech Sign Control Software	Power Input:	100-240 VAC
Communications Options:	Ethernet	Compliance Information:	UL/cUL for wet locations
Display Dimming:	Manual Only	Cabinet (Housing):	Front hinged, NEMA3R enclosure
Operating Temperature:	32ºF to 158ºF	Warranty:	1 year
Cabinet Color:	Duranodic Bronze

Protection and Maintenance

• Durable corrosion-resistant aluminum cabinet
• Conformal coating protects electronics components from outside elements including dust
• Hinged cabinet face supports easy installation and maintenance
• UL/cUL Listed for wet locations

Sign Control Software

• Ethernet communications
• Compatible with Windows^® 10 or higher
• Uses a looping weekly playlist for easy scheduling
• Includes a password protected web interface that offers live access for monitoring sign status and the ability to temporarily override the message schedule

System Requirements

RGB Rebel Series Smart Sign Display

• 110-240VAC input power connection at each Smart Sign
• A wired Ethernet network connection at each sign
• Static IP lease on a DHCP enabled network

Computer Requirements for Sign Control Software

• Server grade PC with power backup running Windows 10 or Windows Server 2012 or higher.
• Minimum requirements: 8GB RAM and 128 GB of hard drive space
• Network requirements: Ethernet, DHCP enabled
