|Product #:||52170||Product Line:||TCIL (LED Traffic Controller)|
|Model:||TCILH-RG/120-277VAC||Dimensions:||7" H x 14" W x 6" D|
|Weight:||3.009 lbs.||Faces:||Single Face|
|Lens: Left or Top:||Red||Lens: Right or Bottom:||Green|
|LED Viewing Angle:||Wide Angle LEDs||Input Voltage:||120-277 VAC|
|UL/cUL Listed:||Wet Locations||Finish:||Duranodic Bronze|
|Cabinet:||Molded Housing||Illumination:||TCIL LED|
|Flashing:||Not Included||Warranty:||5 Year Warranty|
5 Year Warranty|
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
To learn more about our warranty, click here.

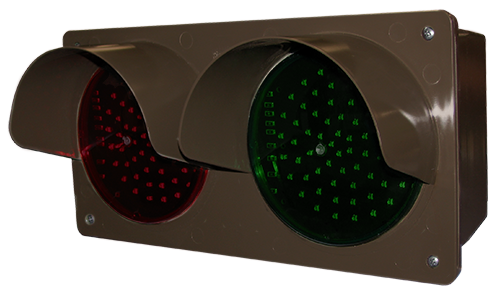

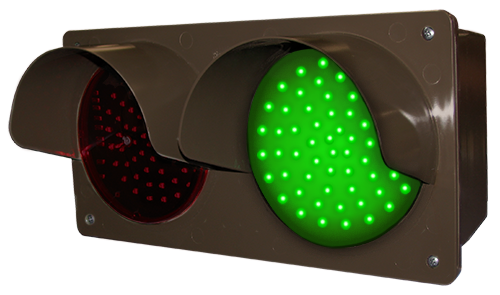

TCIL Series LED Traffic Controller - Horizontal, Red-Green. Features super bright, direct-view LEDs on a replaceable circuit board. Controller housing and hood construction is injection molded, impact resistant polycarbonate. Also includes two tinted lens covers.
Standard housing and hood finish is Duranodic Bronze; custom paint finishes are available. Input voltage 120-277VAC. UL/cUL Listed for wet locations. Housing can be used for surface mounting. Ceiling, post and wall-projection mountings are also available. Traffic Controller can be controlled by a switch or third-party relay. Switch is available separately. Manufactured in the USA.
