|Product #:||51897||Product Line:||PHX (Outdoor Blank-out LED Backlit Sign)|
|Model:||PHX1434GGR-256/12-24VDC||Dimensions:||14" H x 34" W x 2.5" D|
|Weight:||13.67 lbs.||Faces:||Single Face|
|LED Viewing Angle:||Wide Angle LEDs||Face Material:||1/8" Dark Grey Diffused Acrylic|
|UL/cUL Listed:||Wet Locations||Finish:||Duranodic Bronze|
|Illumination:||PHX LED||Mounting Channel:||None|
|Flashing:||Not Included||Input Voltage:||12-24 VDC|
|Cabinet:||Combo 2.5"||Warranty:||5 Year Warranty|
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
To learn more about our warranty, click here.

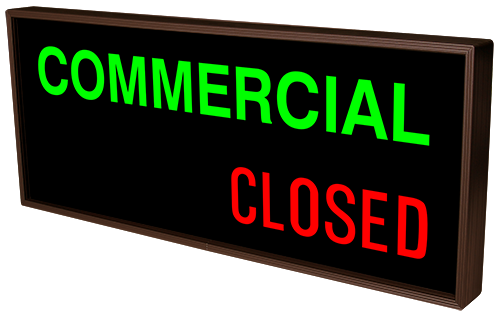

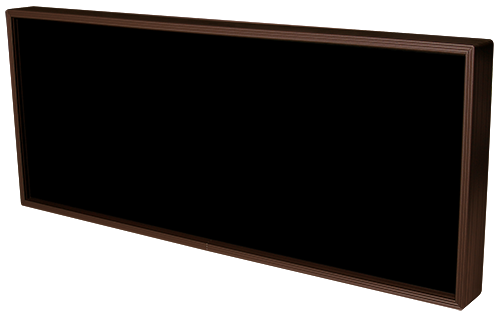

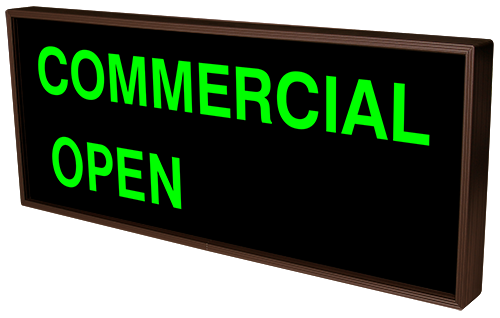

This PHX Series COMMERCIAL | OPEN | CLOSED outdoor, blankout sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.
It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
