Wholesale Manufacturer of Directional LED Signs & Signals

67777 (DOT4141RWAWR-S599/100-240VAC) R3-1 No Right Turn Symbol | R10-15R TURNING VEHICLES Right Turn Arrow YIELD TO Pedestrian Symbol (100-240 VAC) LED Sign

Product #: 67777 Product Line: NUDOT (DOT LED Blank-Out Sign)
Model: DOT4141RWAWR-S599/100-240VAC Dimensions: 41" H x 41" W x 6.5" D
Weight: 100.654 lbs. Faces:Single Face
Face Material:1/8" Smoked Polycarbonate(5109)Illumination:TCL LED
LED Viewing Angle:Narrow Angle LEDsUL/cUL Listed:Wet Locations
Finish:Powdercoat BlackPower Supplies:No Redundancy
Cabinet:DOT Single Face 6.5"Photodimming:Single Photodimming
Input Voltage:100-240 VAC Warranty: 5 Year Warranty
Message Display Messages Message Color Character Height

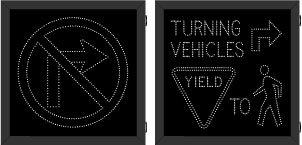

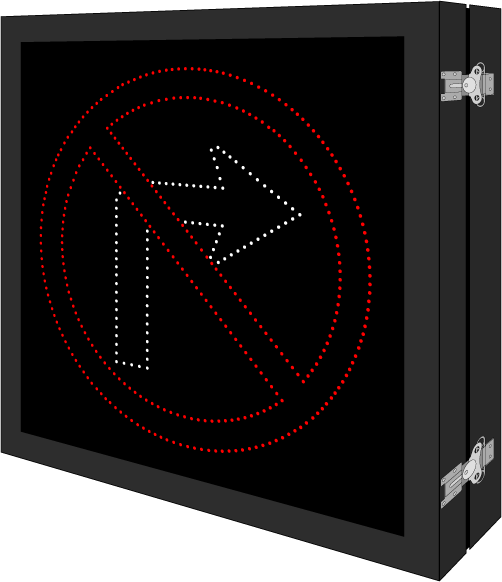

No Right Turn Symbol ImageNo Right Turn Symbol Red, White Narrow Angle LED 31.0", 19.0"
TURNING VEHICLES Right Turn Arrow YIELD to Pedestrian Symbol Amber, White, Red Narrow Angle LED 3.875", 8.5", 17.125", 4.25", 17.0"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

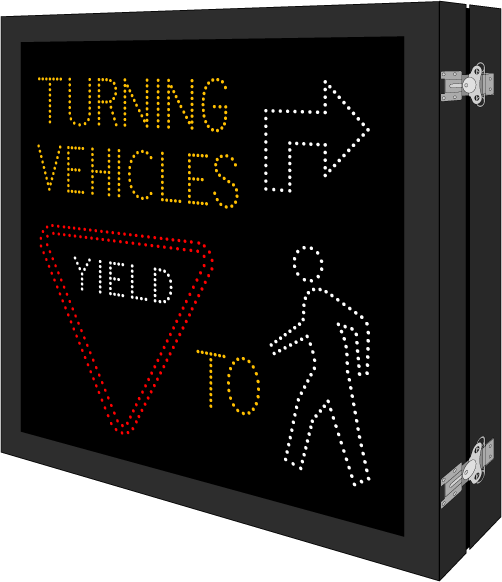

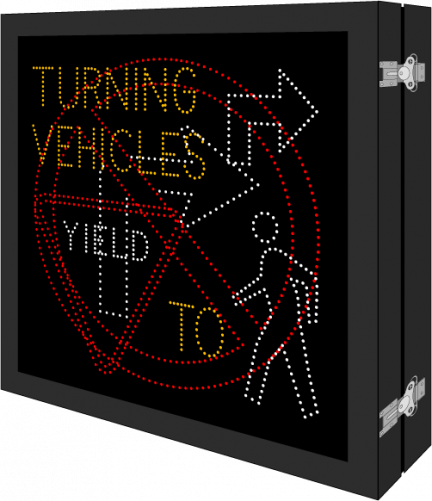

This DOT Series R3-1 No Right Turn Symbol | R10-15R TURNING VEHICLES Right Turn Arrow YIELD TO Pedestrian Symbol sign is a direct-view LED design that illuminates red, white, and amber when activated and blanks out when deactivated. Outside cabinet dimensions are 41.000" x 41.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

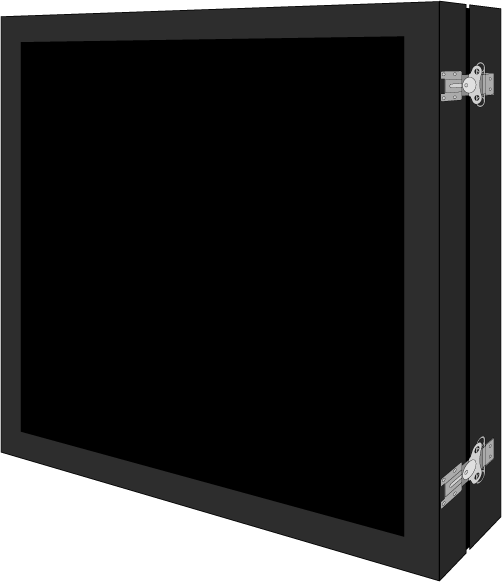

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
