Wholesale Manufacturer of Directional LED Signs & Signals

68095 (DOT3529RW-D601/9-24VDC) R3-2 No Left Turn Symbol w/ Train (9-24 VDC) LED Sign

Product #: 68095 Product Line: NUDOT (DOT LED Blank-Out Sign)
Model: DOT3529RW-D601/9-24VDC Dimensions: 35" H x 29" W x 6.5" D
Weight: 64.109 lbs. Faces:Single Face
Face Material:1/8" Smoked Polycarbonate(5109)Illumination:TCL LED
LED Viewing Angle:Narrow Angle LEDsUL/cUL Listed:Wet Locations
Finish:Powdercoat BlackPower Supplies:Redundant
Cabinet:DOT Single Face 6.5"Photodimming:Single Photodimming
Input Voltage:9-24 VDC Warranty: 5 Year Warranty
Message Display Messages Message Color Character Height
No Left Turn Symbol /w Train ImageNo Left Turn Symbol /w Train Red, White Narrow Angle LED 21", 12.625", 6.0"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

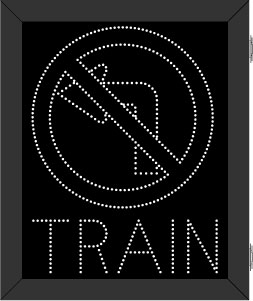

This DOT Series R3-2 No Left Turn Symbol w/ Train sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 35.000" x 29.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

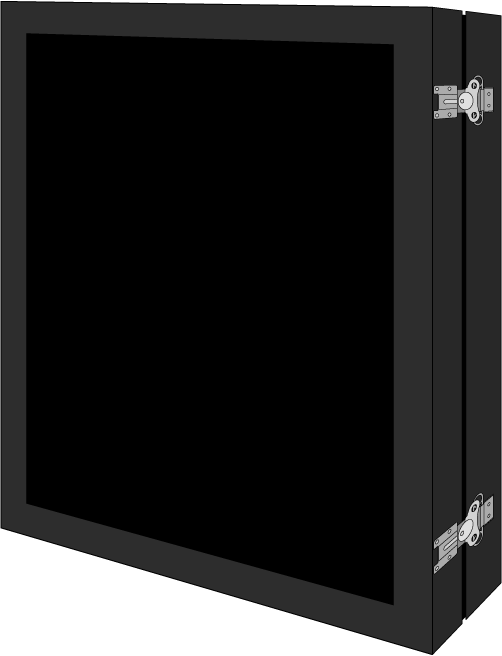

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
