Wholesale Manufacturer of Directional LED Signs & Signals

37973 (PHX1418RG-A203/120-277VAC) STOP | GO (120-277 VAC) LED Sign

Product #: 37973 Product Line: PHX (Outdoor Blank-out LED Backlit Sign)
Model: PHX1418RG-A203/120-277VAC Dimensions: 14" H x 18" W x 2.5" D
Weight: 6.121 lbs. Faces:Single Face
Graphic:PrintedColor:Black Blockout
LED Viewing Angle:Wide Angle LEDsFace Material:1/8" Dark Grey Diffused Acrylic
UL/cUL Listed:Wet LocationsFinish:Duranodic Bronze
Illumination:PHX LEDMounting Channel:None
Input Voltage:120-277 VACFlashing:Not Included
Cabinet:Combo 2.5" Warranty: 5 Year Warranty

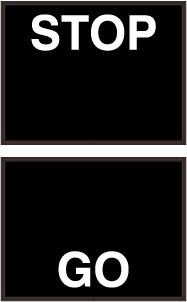

Message Display Messages Message Color Character Height

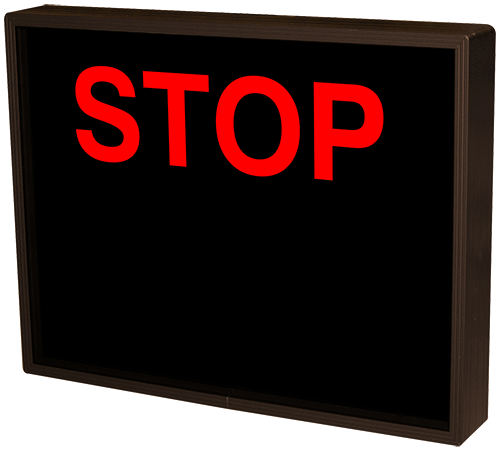

STOP ImageSTOP Red Wide Angle LED 3.5"

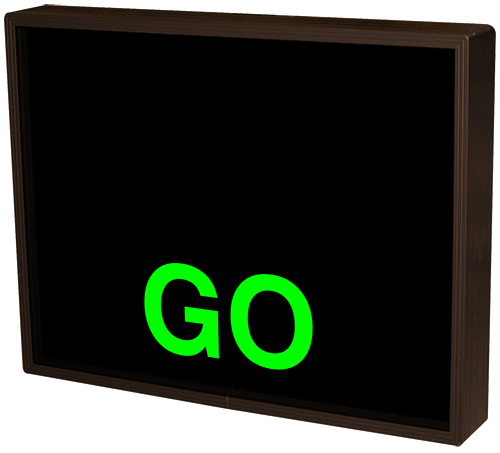

GO Green Wide Angle LED 3.5"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.


Product Description

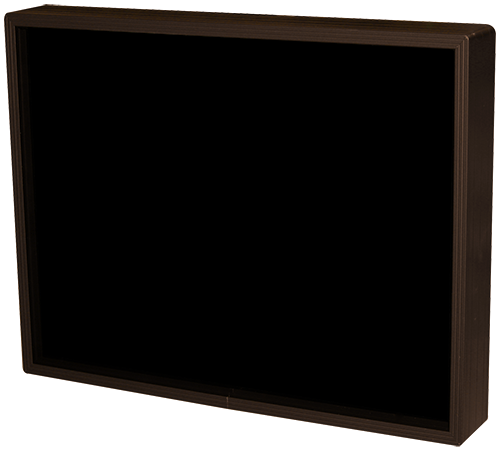

This PHX Series STOP | GO (120-277VAC) outdoor, blankout sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
