|Product #:||38775||Product Line:||SBL (Indoor Blank-out LED Backlit Sign)|
|Model:||SBL77R-E840/120-277VAC||Dimensions:||7" H x 7" W x 2.5" D|
|Weight:||1.935 lbs.||Faces:||Single Face|
|Input Voltage:||120-277 VAC||Color:||Black Blockout|
|Face Material:||1/8" Dark Grey Diffused Acrylic||Finish:||Duranodic Bronze|
|UL/cUL Listed:||UL Listed||Flashing:||Not Included|
|Cabinet:||Combo 2.5"||Warranty:||2 Year Warranty|
2 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
To learn more about our warranty, click here.

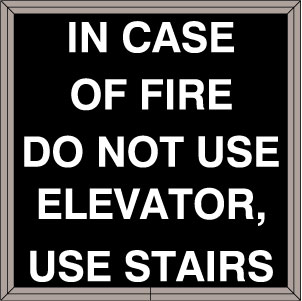

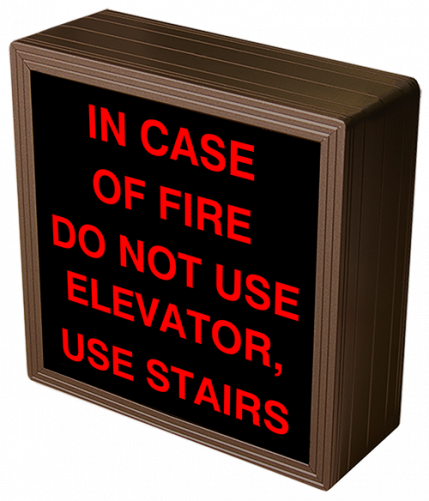

This SBL Series IN CASE OF FIRE DO NOT USE ELEVATOR, USE STAIRS indoor, blankout, LED backlit sign is designed with a matrix of energy efficient LEDs illuminating a block-style message. The sign features blankout technology that only displays the sign message when illuminated.

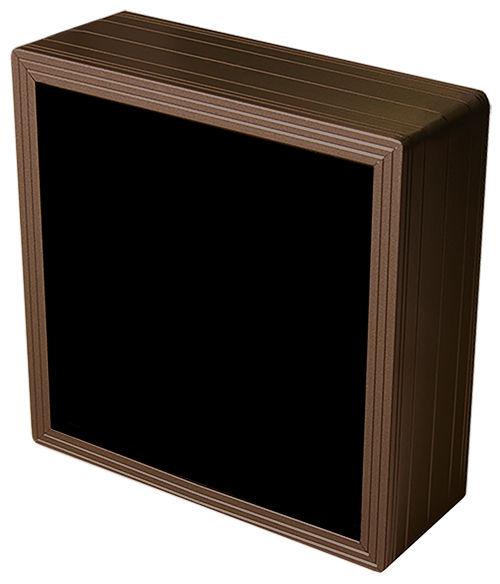

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed.
