Wholesale Manufacturer of Directional LED Signs & Signals

35689 (TCL1260DRR-H737DS/120-277VAC) AMBULANCE | AMBULANCE (120-277 VAC) LED Sign

  • Signal-Tech 35689 TCL1260DRR-H737DS/120-277VAC AMBULANCE | AMBULANCE (120-277 VAC)
  • Signal-Tech 35689 TCL1260DRR-H737DS/120-277VAC AMBULANCE | AMBULANCE (120-277 VAC) Product Message 1
  • TCL Video Image
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
  • Item Details
  • Messages
  • Installation & Wiring
  • Warranty
Product #: 35689 Product Line: TCL (Outdoor Blank-out LED Direct-view Sign)
Model: TCL1260DRR-H737DS/120-277VAC Dimensions: 12" H x 60" W x 7.5" D
Weight: 50.479 lbs. Faces:Double Face
Face Material:1/8" Smoked Polycarbonate(5109)Illumination:TCL LED
LED Viewing Angle:Wide Angle LEDsCabinet:750H2 7.5"
Input Voltage:120-277 VACUL/cUL Listed:Wet Locations
Finish:Duranodic BronzeMounting Channel:None
Flashing:Not Included Warranty: 5 Year Warranty
Message DisplayMessages Message Color Character Height
Open | Closed - 25883AMBULANCE Red Wide Angle LED 7.0"
AMBULANCE Red Wide Angle LED 7.0"
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product Description

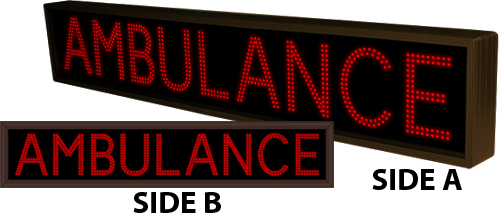

This TCL Series AMBULANCE | AMBULANCE (120-277VAC) outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations. Manufactured in the USA.
