|Product #:||54735||Product Line:||PHXF (Outdoor LED Backlit Sign)|
|Model:||PHXF1212W-N843B/120-277VAC||Dimensions:||12" H x 12" W x 2.5" D|
|Weight:||4.572 lbs.||Faces:||Single Face|
|LED Viewing Angle:||Wide Angle LEDs||UL/cUL Listed:||Wet Locations|
|Finish:||Duranodic Bronze||Mounting Channel:||None|
|Input Voltage:||120-277 VAC||Illumination:||PHXF LED|
|Flashing:||Not Included||Face Material:||Clear 1/8" Impact Modified Acrylic|
|Cabinet:||Combo 2.5"||Warranty:||5 Year Warranty|
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
To learn more about our warranty, click here.

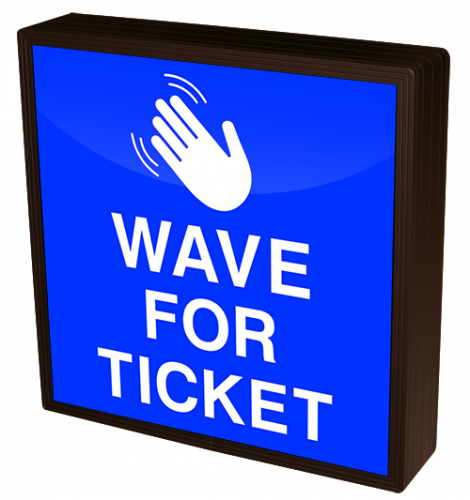

This PHXF Series WAVE FOR TICKET w/ Waving Hand Symbol outdoor sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message is viewable in daylight conditions when off and can be illuminated at night or in low light conditions to optimize readability.
It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded all-weather frame and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
