|Product #:||57077||Product Line:||TCL (Outdoor Blank-out LED Direct-view Sign)|
|Model:||TCL77A-224/12-24VDC||Dimensions:||7" H x 7" W x 2.5" D|
|Weight:||2.111 lbs.||Faces:||Single Face|
|Face Material:||1/8" Smoked Polycarbonate(5109)||Illumination:||TCL LED|
|Input Voltage:||12-24 VDC||LED Viewing Angle:||Wide Angle LEDs|
|UL/cUL Listed:||Wet Locations||Finish:||Duranodic Bronze|
|Cabinet:||Combo 2.5"||Warranty:||5 Year Warranty|
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
To learn more about our warranty, click here.

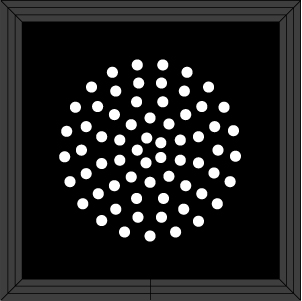

This TCL Series Indicator Dot, Single with Optional Flashing, 4 in dia, Amber outdoor, blank-out sign is designed with super bright LEDs and a contrasting face; we guarantee it's readable in direct sunlight. The sign message is formed by visible LEDs on a black sign face and is designed to illuminate the message(s) when turned on and blank out or extinguish the message when off.

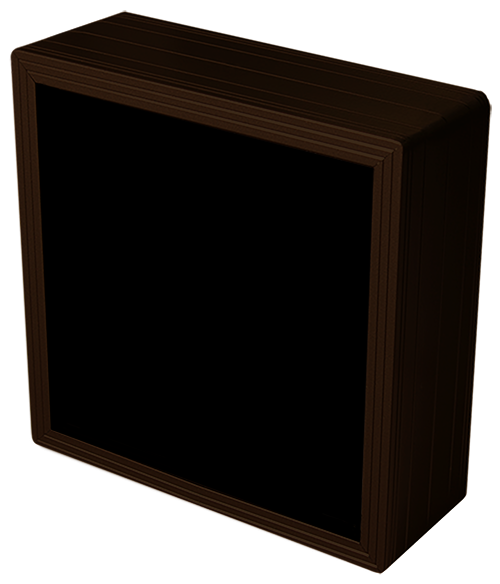

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded all-weather frame and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
