  • Train Symbol Pedestrain DO NOT CROSS | Train Symbol Pedestrain DO NOT CROSS

47637 (PHX3024WR-M224)

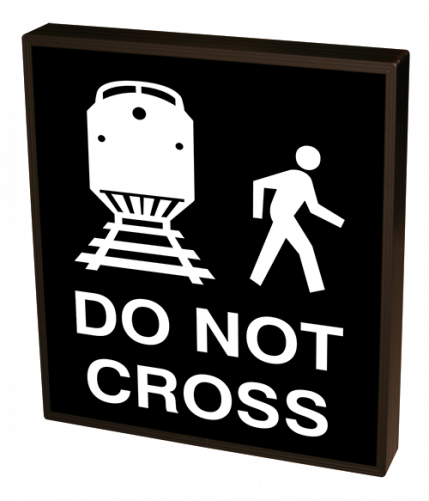

Train Symbol Pedestrain DO NOT CROSS | Train Symbol Pedestrain DO NOT CROSS LED Sign

Estimated to ship on 08/02/2019 if ordered today before 3pm ET.
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
  • Item Details
  • Messages
  • Installation & Wiring
  • Warranty
Product #: 47637 Product Line: PHX (Outdoor Blank-out LED Backlit Sign)
Model: PHX3024WR-M224 Dimensions: 30" H x 24" W x 2.25" D
Weight: 55021.413 lbs. Faces:Single Face
Color:Black BlockoutLED Viewing Angle:Wide Angle LEDs
Face Material:1/8" Dark Grey Diffused AcrylicUL/cUL Listed:Wet Locations
Finish:Duranodic BronzeIllumination:PHX LED
Mounting Channel:NoneCabinet:PHX 2.25"
Input Voltage:120-277 VACFlashing:Not Included
Warranty: 5 Year Warranty

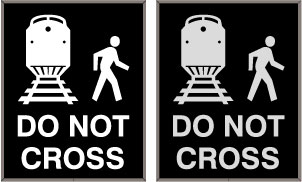

Message DisplayMessages Message Color Character Height
Open | Closed - 25883Train Symbol Pedestrain DO NOT CROSS White Wide Angle LED 14.875", 10.75", 3.5"

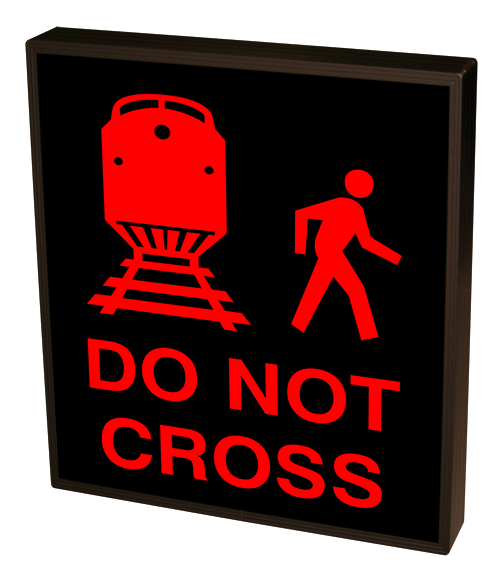

Train Symbol Pedestrain DO NOT CROSS Red Wide Angle LED 14.875", 10.75", 3.5"
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

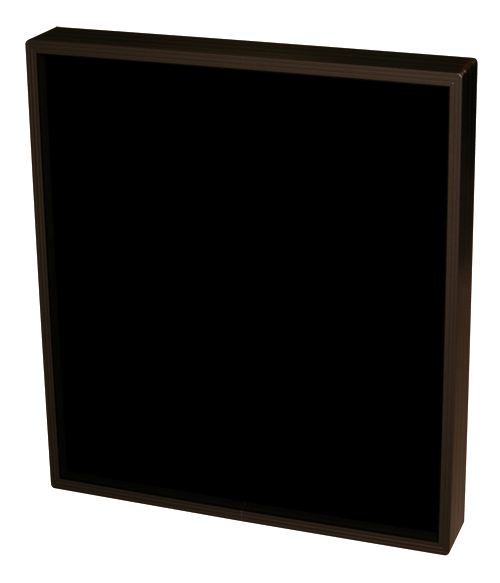

This PHX Series Train Symbol Pedestrain DO NOT CROSS | Train Symbol Pedestrain DO NOT CROSS outdoor, blankout sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message illuminates when turned on and blanks out or extinguishes when off. PHX Series signs are guaranteed readable in direct sunlight.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations. Manufactured in the USA.
