Wholesale Manufacturer of Directional LED Signs & Signals

67819 (DOT2066GR-100DS/100-240VAC) OPEN | CLOSED (100-240 VAC)

Estimated to ship in 15 days.
Lead times subject to change based on quantity.
Add To CartRequest A QuoteView Spec Sheet
Product #: 67819 Product Line: NUDOT (DOT LED Blank-Out Sign)
Model: DOT2066GR-100DS/100-240VAC Dimensions: 20" H x 66" W x 6.5" D
Weight: 93.081 lbs. Faces:Single Face
Face Material:1/8" Smoked Impact Modified Acrylic (5109)Illumination:TCL LED
LED Viewing Angle:Narrow Angle LEDsUL/cUL Listed:Wet Locations
Finish:Powdercoat BlackPower Supplies:Redundant
Cabinet:NuDOT Single Face 6.5"Photodimming:Single Photodimming
Input Voltage:100-240 VAC Warranty: 5 Year Warranty
Message Display Messages Message Color Character Height
OPEN ImageOPEN Green Narrow Angle LED 12.0"
CLOSED Red Narrow Angle LED 12.0"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.


Product Description

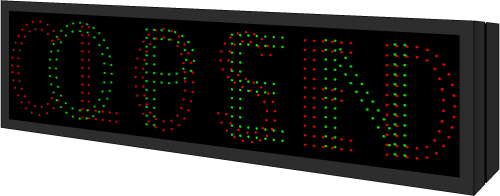

This DOT Series OPEN | CLOSED sign is a direct-view LED design that illuminates red or green when activated and blanks out when deactivated. Outside cabinet dimensions are 20.000" x 66.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
