68380 (DOT2375RG-100TS/100-240VAC) OPEN | CLOSED (100-240 VAC)

Signal-Tech OPEN | CLOSED (100-240 VAC) - 68380 Product Message

Estimated to ship in 15 days.
Lead times subject to change based on quantity.

Add To Cart Request A Quote View Spec Sheet

Product #:	68380	Product Line:	NUDOT (DOT LED Blank-Out Sign)
Model:	DOT2375RG-100TS/100-240VAC	Dimensions:	23" H x 75" W x 6.5" D
Weight:	111.726 lbs.	Faces:	Single Face
Face Material:	1/8" Smoked Polycarbonate(5109)	Illumination:	TCL LED
LED Viewing Angle:	Narrow Angle LEDs	UL/cUL Listed:	Wet Locations
Finish:	Powdercoat Black	Power Supplies:	Redundant
Cabinet:	DOT Single Face 6.5"	Photodimming:	Single Photodimming
Input Voltage:	100-240 VAC	Warranty:	5 Year Warranty

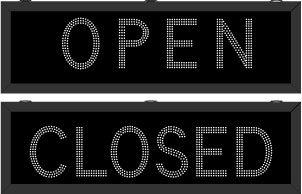

Message Display	Messages	Message Color	Character Height
	Open	Green Narrow Angle LED	12.0"
	CLOSED	Red Narrow Angle LED	12.0"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

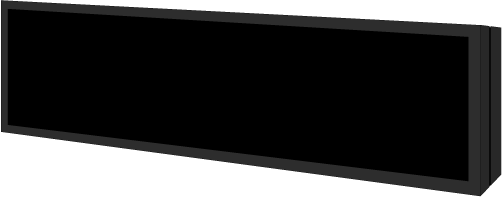

This DOT Series, OPEN | CLOSED sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 23.000" x 75.000" x 6.500".

The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.

It is housed in a corrosion-resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. An optional hood is available. The cabinet features 1/4" thick impact-resistant poly carbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
