Wholesale Manufacturer of Directional LED Signs & Signals

Mounting Posts

Post Types

Rectangular Post Image

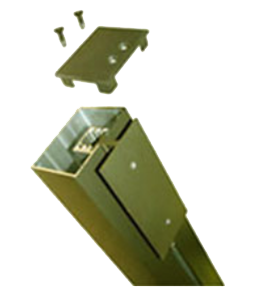

2 ¼" x 3" Rectangular Post

2¼" x 3" extruded aluminum post has a 0.080 wall thickness and features a mounting slot on one side for sign mounting. Post is available with a 6" x 6" aluminum base plate for surface mounting or without for direct burial mount. Each post includes an end cap and locking square to secure the sign in place.

Standard Post finish is Duranodic Bronze, custom paint colors are available. Posts with base plates are available in three standard lengths: 40", 60", and 90" or in custom lengths up to 90". Posts for direct burial mounting (without base plates) are available in four standard lengths: 40", 60", 90" and 120" or in custom lengths up to 120".

Back to products



Heavy Duty Post Image

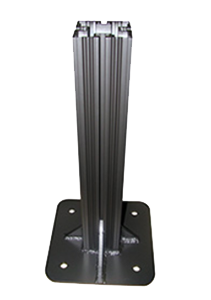

4" x 4" Decorative Heavy Duty Post

4" x 4" extruded aluminum post has a 0.115 wall thickness and a welded 12" x 12" aluminum base plate with gussets. The Post features a fluted edge design and features a mounting slot on four sides for sign mounting. Each post includes an end cap and locking square to secure the sign in place.

Standard Post finish is Duranodic Bronze, custom paint colors are available. Posts are available in four standard lengths: 40", 60", 90", and 120" or in custom lengths up to 120"L.

Back to products



Mast Arm Post Image

Mast Arm Post

The Mast Arm Post is designed to support a free-hanging 6 foot wide Signal-Tech Clearance I-Bar. It is constructed with extruded aluminum vertical and horizontal uprights and features a welded 12" square base plate with gussets. Overall dimensions are 120" high x 108" wide. Not recommended for Clearance I-Bars over six feet wide.

Back to products


2¼"x 3" & 4" x 4" Post Mounting Recommendations

  • Use a single Post to center or flag mount signs up to 26"wide. A bracket for attaching the post to the sign will be installed on the sign at the factory.
  • Use a post with a base plate when hanging a sign from the ceiling, pendant style.
  • Use post(s) with base plate(s) to side mount or projection mount a sign wider than 26". This can be done with either a single or double post mount. Posts should be mounted to one or both sides of the sign and travel the full width of the sign.
  • Use Decorative, Heavy Duty 4" Square Post when:
    • Posts are 90" or longer
    • Mounting a sign that is over 12 sq ft.

Back to products


Post Mounting Configurations

Center Post Mount

Center Post Mount

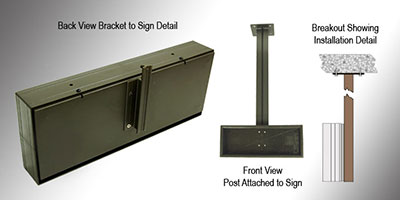

Ceiling Pendant Mount

Ceiling Pendant Mount

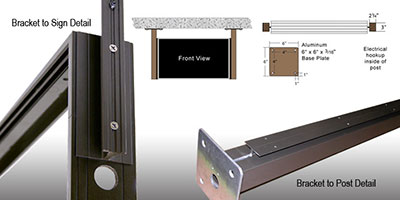

Double Post Ceiling Pendant Mount

Double Post Ceiling Pendant Mount

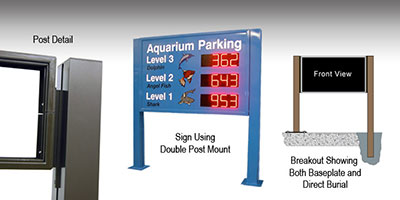

Double Post Mount

Double Post Mount

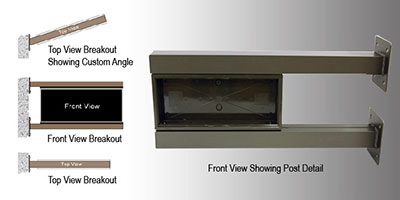

Double Post Projection Mount

Double Post Projection Mount
