Wholesale Manufacturer of Directional LED Signs & Signals

Sky Bracket Mounting for DOT Series Signs

Signal-Tech dot_sign_mount image

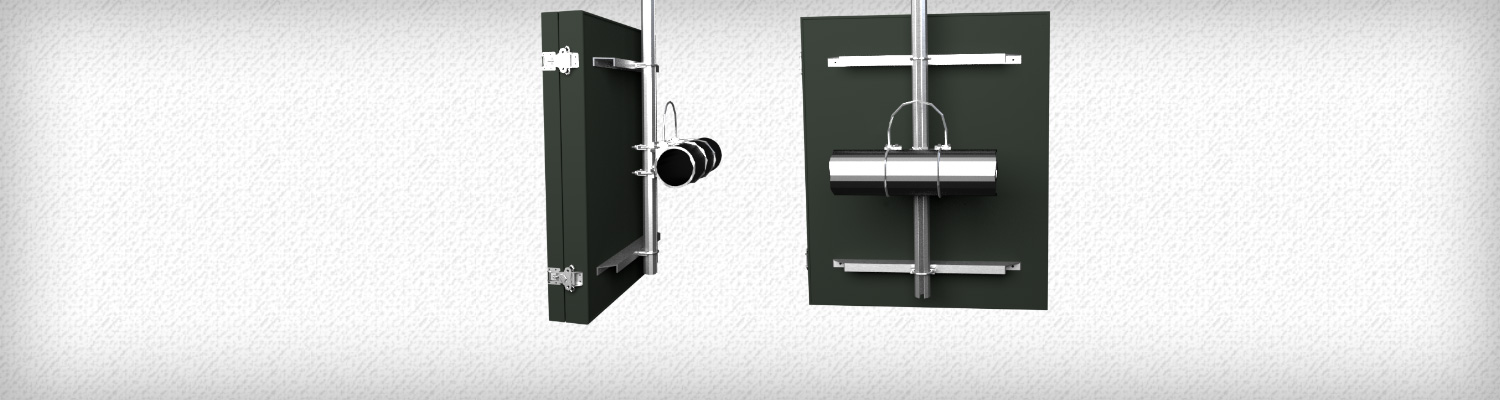

The Sky Bracket Sign Mount is used to mount Signal-Tech DOT Series signs to a mast arm or pole. The mount attaches to the back of the sign and its unique swivel and saddle design allows it to be used for either a vertical or horizontal mounting application. The mount is equipped with locking fasteners to minimize installation time.

The Sign Mount includes a 46" long mounting pole with foam insert and end caps, a cast aluminum saddle bracket and swivel, adjustable cables sized to fit a 2" to 17" diameter mast arm pole, mounting channels (factory welded to back of sign) and mounting hardware.

Quote Button
Request A Quote
Click here to request a quote.

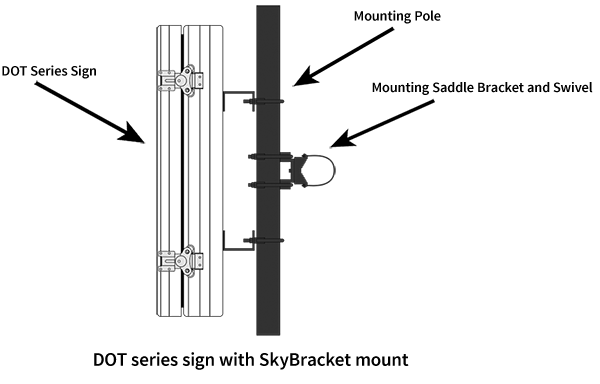

DOT Series Sign with Sky Bracket Sign Mount

Watch Video
Installation Video
Articulating Cable Clamp Kit
Installation Video
Sky Bracket Installation
Sky Bracket Sign Kit Installation Video

Vertical and Horizontal Orientation

Sky Bracket Sign Mount Features:

  • Designed without set screws, pipe threads, retainer rings, and screw lock buckles to avoid assembly, installation, and maintenance problems
  • Swivel saddle has a multi-tooth mounting surface to provide a positive grip on mast arm
  • No set screws to overload casting and cause catastrophic failure. The power grip clamps put aluminum castings in compression to avoid overloads at fasteners.
  • All fasteners are equipped with locking devices
  • All adjustments can be made with 1/2 " & 9/16" box wrench.

Data Sheet
Data Sheet
Click here to learn more.
Install Sheet Download
Installation Sheet
Click here to view the installation sheet.

SkyBracket Set Up

Custom Sky Bracket Mounting configurations are also available. Contact us to discuss your unique requirements.
