Wholesale Manufacturer of Directional LED Signs & Signals

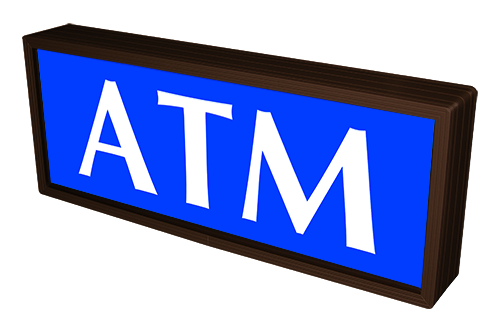

39382 (PHXF718W-125B/120-277VAC) ATM (120-277 VAC) LED Sign

Estimated to ship in 5 days.
Lead times subject to change based on quantity.
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
Product #: 39382 Product Line: PHXF (Outdoor LED Backlit Sign)
Model: PHXF718W-125B/120-277VAC Dimensions: 7" H x 18" W x 2.5" D
Weight: 3.79 lbs. Faces:Single Face
Color:Blue TranslucentGraphic:Printed
LED Viewing Angle:Wide Angle LEDsUL/cUL Listed:Wet Locations
Finish:Duranodic BronzeMounting Channel:None
Input Voltage:120-277 VACIllumination:PHXF LED
Flashing:Not IncludedFace Material:Clear 1/8" Impact Modified Acrylic
Cabinet:Combo 2.5" Warranty: 5 Year Warranty
Message Display Messages Message Color Character Height

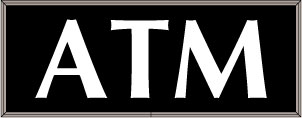

ATM ImageATM White Wide Angle LED 4.75"

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.


Product Description

This PHXF Series ATM outdoor sign is designed with high-intensity, LED reflected, backlit illumination and a block letter-style message face. The sign message is viewable in daylight conditions when off and can be illuminated at night or in low light conditions to optimize readability.

It is designed with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed for wet locations.
