|Product #:||54335||Product Line:||STO (Traffic-Grade LED Blank-Out Sign)|
|Model:||STR2424R-178/120-277VAC||Dimensions:||24" H x 24" W x 6" D|
|Weight:||24.834 lbs.||Faces:||Single Face|
|Face Material:||1/8" Smoked Polycarbonate(5109)||Illumination:||TCL LED|
|LED Viewing Angle:||Narrow Angle LEDs||UL/cUL Listed:||Wet Locations|
|Flashing:||Not Included||Cabinet:||STR 6"|
|Input Voltage:||120-277 VAC||Warranty:||5 Year Warranty|
5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.
To learn more about our warranty, click here.

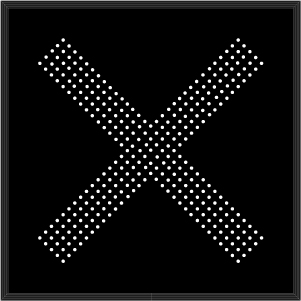

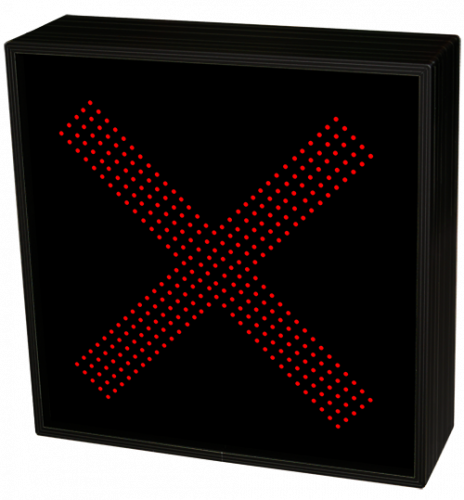

This STR Series X (120-277VAC) outdoor, highway-grade blank-out sign is designed with a NEMA 3R cabinet, super bright LEDs and a contrasting face; guaranteed readable in direct sunlight. The sign message is formed by strategically placed visible LEDs on a black sign face and is designed to illuminate the message or messages when turned on and blank-out or extinguish the message when off.

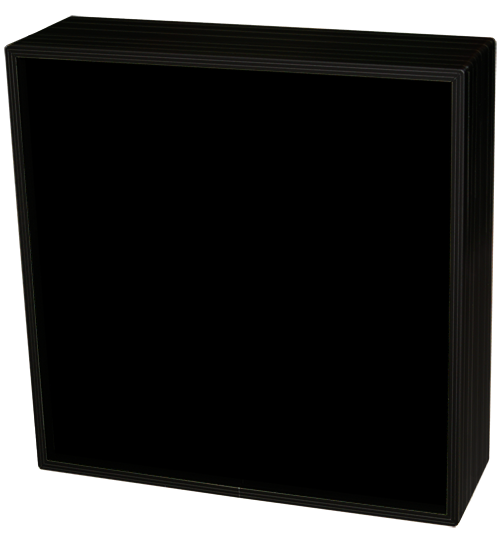

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. It has a corrosion resistant, reinforced all-weather cabinet and a robust back that is ideal for span wire and mast arm mounting. Each sign ships with 0.125" aluminum Lift'N Shift back for wall mounting. Standard cabinet finish is Black; custom paint finishes are available. Sign can be controlled by a switch, Signal-Tech Sign Control Software or third-party relay. Control switch and software can be purchased separately. UL/cUL Listed for wet locations.
