55753 (STR3030RW-626/120-277VAC) R3-2 NO LEFT TURN SYMBOL (120-277 VAC) LED Sign

Signal-Tech 55753 STR3030RW-626/120-277VAC R3-2 NO LEFT TURN SYMBOL (120-277 VAC)

Signal-Tech R3-2 NO LEFT TURN SYMBOL (120-277 VAC) - 55753 Product Message

Add To Cart Request A Quote View Spec Sheet

Product #:	55753	Product Line:	STO (Traffic-Grade LED Blank-Out Sign)
Model:	STR3030RW-626/120-277VAC	Dimensions:	30" H x 30" W x 6" D
Weight:	38.851 lbs.	Faces:	Single Face
Face Material:	1/8" Smoked Impact Modified Acrylic (5109)	Illumination:	TCL LED
LED Viewing Angle:	Narrow Angle LEDs	UL/cUL Listed:	Wet Locations
Mounting Channel:	None	Finish:	Black
Flashing:	Not Included	Cabinet:	STR 6"
Input Voltage:	120-277 VAC	Warranty:	5 Year Warranty

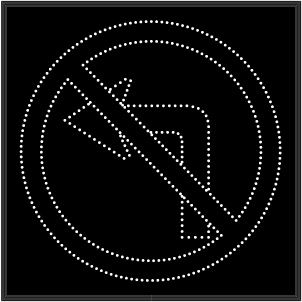

Message Display	Messages	Message Color	Character Height
	NO LEFT TURN SYMBOL	Red, White Narrow Angle LED	26.5", 16.0"

Single Gang Switch (1-SPST) (120 VAC) Image

Single Gang Switch (1-SPST) (120 VAC)
Product #: 3040

5 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Other Signs Available

Product #: 54001

Product Description

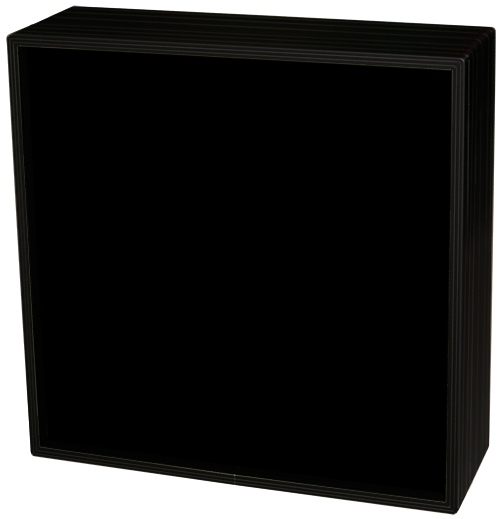

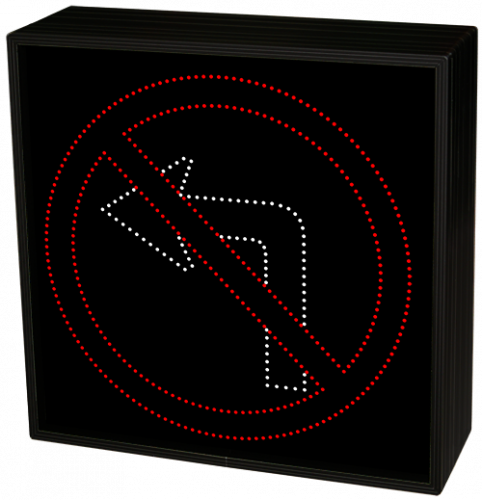

This STR Series R3-2 NO LEFT TURN SYMBOL (120-277VAC) outdoor, highway-grade blank-out sign is designed with a NEMA 3R cabinet, super bright LEDs and a contrasting face; guaranteed readable in direct sunlight. The sign message is formed by strategically placed visible LEDs on a black sign face and is designed to illuminate the message or messages when turned on and blank-out or extinguish the message when off.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. It has a corrosion resistant, reinforced all-weather cabinet and a robust back that is ideal for span wire and mast arm mounting. Each sign ships with 0.125" aluminum Lift'N Shift back for wall mounting. Standard cabinet finish is Black; custom paint finishes are available. Sign can be controlled by a switch, Signal-Tech Sign Control Software or third-party relay. Control switch and software can be purchased separately. UL/cUL Listed for wet locations.
