Wholesale Manufacturer of Directional LED Signs & Signals

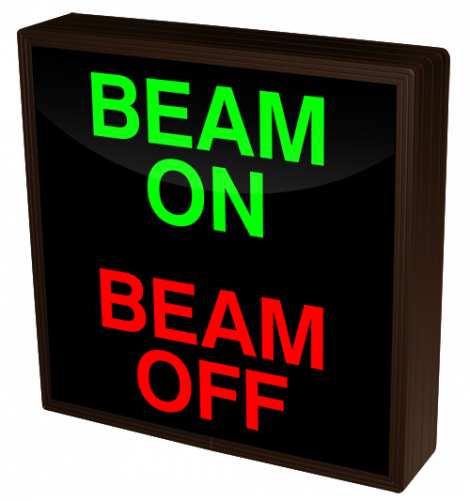

38821 (SBL1212GR-B242/12-24VDC) BEAM ON | BEAM OFF (12-24 VDC) LED Sign

  • Signal-Tech 38821 SBL1212GR-B242/12-24VDC BEAM ON | BEAM OFF (12-24 VDC)
  • Signal-Tech 38821 SBL1212GR-B242/12-24VDC BEAM ON | BEAM OFF (12-24 VDC) Product Message 1
  • Signal-Tech 38821 SBL1212GR-B242/12-24VDC BEAM ON | BEAM OFF (12-24 VDC) Product Message 2
  • Signal-Tech 38821 SBL1212GR-B242/12-24VDC BEAM ON | BEAM OFF (12-24 VDC) Product Message 3
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
  • Item Details
  • Messages
  • Installation & Wiring
  • Switches & Mounting
  • Warranty
Product #: 38821 Product Line: SBL (Indoor Blank-out LED Backlit Sign)
Model: SBL1212GR-B242/12-24VDC Dimensions: 12" H x 12" W x 2.25" D
Weight: 4.154 lbs. Faces:Single Face
Illumination:SBL LEDGraphic:Printed
Color:Black BlockoutFace Material:1/8" Dark Grey Diffused Acrylic
Finish:Duranodic BronzeCabinet:PHX 2.25"
UL/cUL Listed:UL ListedFlashing:Not Included
Input Voltage:12-24 VDC Warranty: 2 Year Warranty

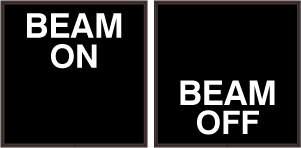

Message DisplayMessages Message Color Character Height
Open | Closed - 25883BEAM ON Green Wide Angle LED 2.0"
BEAM OFF Red Wide Angle LED 2.0"
2 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.

Product Description

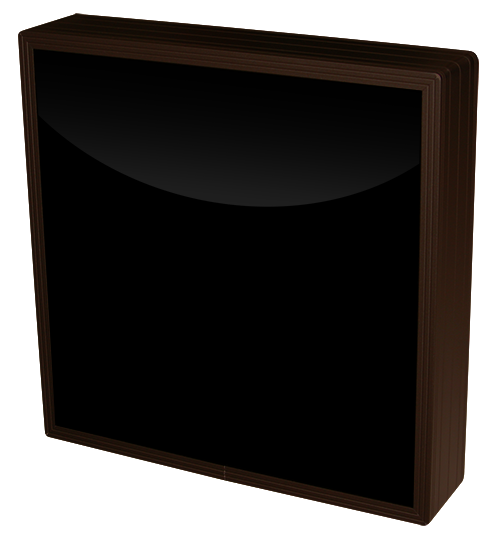

This SBL Series BEAM ON | BEAM OFF (12-24VDC) indoor, blankout, LED backlit sign is designed with a matrix of energy efficient LEDs illuminating a block-style message. The sign features blankout technology that only displays the sign message when illuminated.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed. Manufactured in the USA.
