55327 (SBL718R-D239/12-24VDC) MAGNET IS ON (12-24 VDC) LED Sign

Estimated to ship in 5 days.
Lead times subject to change based on quantity.
Add To CartRequest A QuoteView Spec SheetLooking to change the frame color? Click here to see what colors are available.
Product #: 55327 Product Line: SBL (Indoor Blank-out LED Backlit Sign)
Model: SBL718R-D239/12-24VDC Dimensions: 7" H x 18" W x 2.5" D
Weight: 3.634 lbs. Faces:Single Face
Illumination:SBL LEDGraphic:Printed
Color:Black BlockoutFace Material:1/8" Dark Grey Diffused Acrylic
Finish:Duranodic BronzeUL/cUL Listed:UL Listed
Flashing:Not IncludedInput Voltage:12-24 VDC
Cabinet:Combo 2.5" Warranty: 2 Year Warranty
Message Display Messages Message Color Character Height
MAGNET IS ON ImageMAGNET IS ON Red Wide Angle LED 1.75"

2 Year Warranty
Our warranty starts from the original date of shipment and runs through the life of the stated warranty period. Should any component become defective during the warranty period, the component or entire unit, at the discretion of Signal-Tech, will be replaced at no charge to the customer; this excludes labor cost to remove and/or reinstall the component or unit.

To learn more about our warranty, click here.


Product Description

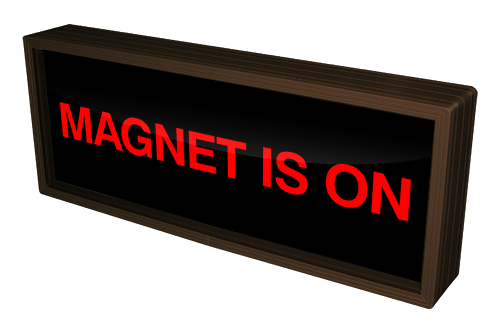

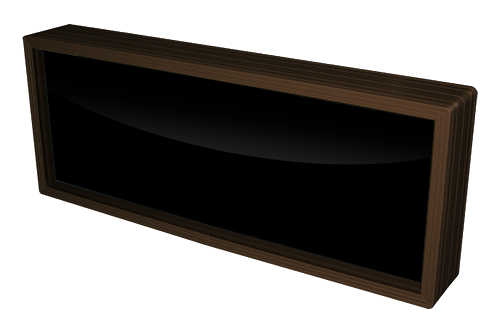

This SBL Series MAGNET IS ON indoor, blankout, LED backlit sign is designed with a matrix of energy efficient LEDs illuminating a block-style message. The sign features blankout technology that only displays the sign message when illuminated.

It is engineered with a solid-state circuit board and switch-mode power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch can be purchased separately. UL/cUL Listed.
