PHX Series Outdoor Blank-out LED Backlit Signs

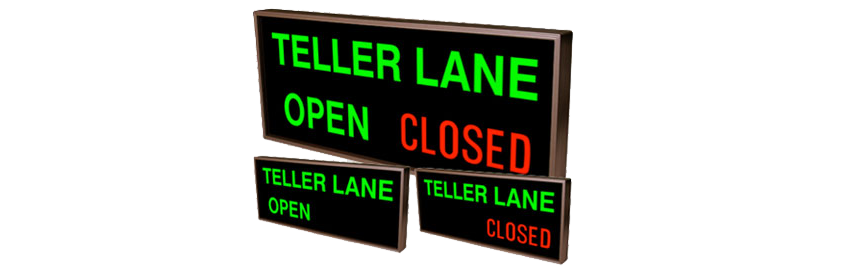

PHX Series Image

Download Word Doc Download PHX Series Specifications

The PHX Series LED sign is designed with high-intensity, LED backlit illumination and a block letter-style message face. The sign message illuminates when turned on and blanks out or disappears when off. PHX Series LED signs are guaranteed readable in direct sunlight.

It is designed with a solid-state circuit board and constant current power supply for maximum LED life. The cabinet is constructed of corrosion-resistant, extruded aluminum and ships with our built-in Lift'N Shift back for wall mounting. Ceiling, post and wall-projection mountings are available. Standard cabinet finish is Duranodic Bronze; custom paint finishes are available. Sign can be controlled by a switch or third-party relay. Control switch sold separately. UL/cUL Listed for wet locations. Manufactured in the USA.

PHX Series Specifications

IlluminationBacklit, high-intensity LEDs
LED Message ColorsRed, Amber, Green, Blue and White
MessageStandard Font: Swiss 721 Bold BT
Message blanks-out when off.
Stock messages or custom messages available
ElectricalInput voltage 120-277VAC or low volt 12-24VDC
UL/cUL Listed for wet locations
Cabinet Construction Single Faced & Double Faced up to 14”H x 18”WOne-piece extruded aluminum frame with an 1/8” thick dark grey diffused acrylic face panel
Cabinet ConstructionDouble Faced larger than 14”H x 18”WAvailable but requires custom engineering
Cabinet DepthSingle Faced: 2¼”
Double Faced: 5½” deep for signs up to 14”H x 18”W
Cabinet FinishStandard: Duranodic Bronze
Options: Custom paint colors or color match paint
Single Face Standard Cabinet Sizes7”H x 7”W, 8”H x 11”W, 7”H x 18”W, 7”H x 34”W, 7”H x 42”W
12”H x 12”W
14”H x 18”W, 14”H x 34”W, 14”H x 34”W
Temperature and Humidity RatingsThe Cabinet and sign components shall operate in the following temperature and humidity conditions:
  • Operational & storage temperature range: -40°F to +165°F
  • Humidity range: 0% to 99% (non-condensing)
IP/NEMA RatingIP55/NEMA 3RX
ControlSwitch or external relay
Accessories/OptionsFlashing
Warranty5 Years
Country of OriginManufactured and assembled in the USA
MountingLift’N Shift sign back offers built in wall mounting (single faced signs only)
Additional mounting can purchased separately: Ceiling, post, recessed

PHX Series Customization Choices

Signal-Tech can customize PHX Series LED Backlit signs to display virtually any monochrome message or logo.

Message OptionsChoose a custom font style, character size, and combination of upper and lower case letters
GraphicGraphic symbols such as DO NOT ENTER, handicap or pedestrian; shapes such as arrows or circles
logos or graphics
Multi-lingual MessagesSign messages can be a single language or multi-lingual.
Double Faced SignsThe message can be the same on both sides or different.
Visual UpgradesFlashing: an entire message or just part of a message. Flash can be set to flash on and off or alternating.
Customize the CabinetCustom choices include: visor, custom engineered mounting, custom paint finish or color matched finish.
