Control Switch Assembly

Product Specifications Control Switches DOT Series LED Blank-out Sign in IP66/NEMA 4X Cabinet I-Bar Series Clearance Bars PHX Series Outdoor Blank-Out LED Backlit Signs PHXF Series Outdoor LED Backlit Sign Post & Mounting RedStorm^™ 2.1 Parking Guidance System RGB Rebel Series Smart Sign Display SA Series Space Available & End of Aisle Signs SAi Series LED Internally Illuminated Space Available Monument Signs with LED Count Displays SBL Series Indoor Blank-Out LED Backlit Signs SBLF Series Indoor LED Backlit Signs SNS Series Internally Illuminated Street Name Signs STR Series Outdoor LED Blank-out Signs TCIL Series Traffic Controller TCL Series Outdoor Blank-Out LED Direct-View Signs VMS Series Smart Sign Rebel Display

Download Word Doc Download Control Switch Specifications

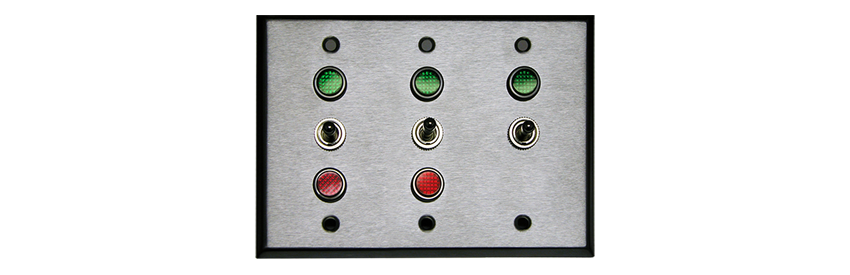

Single pole/single throw, single pole/double throw and double pole/double throw toggle switches with stainless steel switch plate and indicator lights. Available in single and multiple gang configurations.

Technical Specifications

Construction	Switch: toggle switch with pre-wired pigtails Switch Plate: Stamped stainless-steel switch plate pre-punched for switch(es) Indicator light(s): Available in red, green or amber
Finish	Switch plate brushed stainless steel
Electrical	120VAC, 277VAC, 12VDC, 24VDC
Dimensions	4.5”H x varied width x 1”D X length varies on gang configuration
Compatible	All sign series

Control Switch Customization Choices

Switch Assembly Configurations	Any combination of single pole single throw, single pole double throw and double pole double throw switches up to an 8-gang configuration.
Custom Switch Plate	Switch plate pre-punched to fit gang configuration
Indicator Lights	Any combination of light colors available
