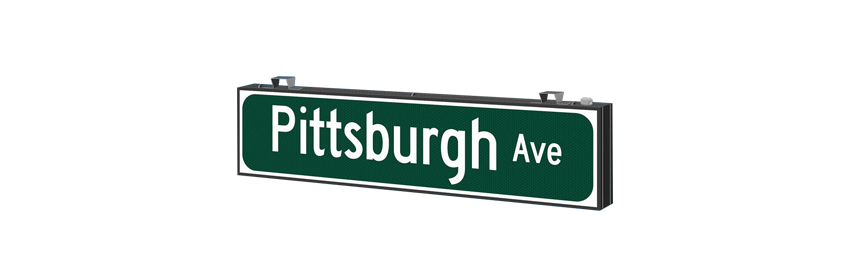

Backlit, retroreflective street name signs
Download SNS Series Specifications
Main Features
- Superior visibility, day and night:
- Translucent, prismatic (retroreflective) printed face
- Edge-lit with cool white LED modules for uniform lighting and contrast
- Minimum brightness: 105 nits (cd/m2)
- Optional photocell for automatic backlight control
- Safe, quick, and effortless installation:
- External wiring connection point and tri-stud mounting hat
- Lockable latches
- Bottom-hinging face with holding cable
- Lightweight (4.5-6 lbs. per ft²)
- Built to last:
- Reflective graphics applied on second surface of UV-resistant face
- 0.090” cabinet wall thickness with durable black finish
- Uses high-quality, IP-66+ rated electrical components
Download
the Illuminated Street Name Signs
Quick Reference Guide
Technical Specifications
Dimensions and Weight
| Height |
18” or 24” |
Visual opening: 16” or 22” |
| Width |
72”, 96”, or 120” (6’, 8’, or 10’) |
Visual opening: 70”, 94”, or 118" |
| Depth |
5.25” |
Single- or double-faced |
| Weight per ft2 |
4.5-6 lbs. |
Single- or double-faced; see product spec sheet for exact weight |
Visual
| Minimum Brightness |
105 nits (cd/m2) |
Units less than 24” tall will appear brighter |
| Print/Graphics |
Translucent, Retroreflective Sheeting |
|
| Standard Face Color |
Printed PMS 342 (Green) |
Other standard colors:
Blue: PMS 294
Brown: PMS 469 |
| Font |
Highway Gothic |
Series C or D used, depending on size and text; Other fonts available upon request |
| Cabinet Finish |
Low-gloss black |
Default—others available upon request |
Electrical
| Input Voltage |
100-277VAC |
|
| Power (nominal) |
30W, 40W, or 50W |
72”, 96”, or 120” length |
| Control |
Optional photocell |
Sign will illuminate automatically at night |
| External Cable |
2’ length; 14AWG, 3-conductor w/ gray PVC jacket |
Junction box not included; internal strain relief collar |
Physical Condition
| Component IP Ratings |
IP66 (Photocell assembly)
IP67 (Power supply)
IP68 (LED modules) |
|
| Cabinet Material |
6063-T6 Aluminum alloy (0.090” wall) |
|
| Face Material |
UV-resistant, 0.125” Impact-modified acrylic |
|
| Mounting Interface |
3/16” thick Aluminum with tri-stud mounting pattern |
Mounting interface comes standard |
