Download RGB Rebel Series Smart Sign Display Specifications

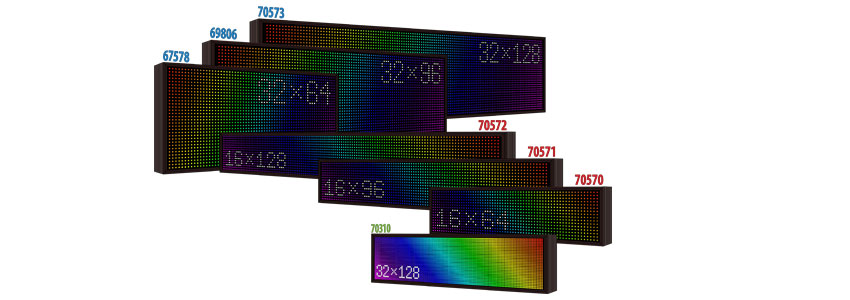

The RGB Rebel Series Smart Display is an outdoor LED programmable display sign. These programmable message signs are ideal for communicating with pedestrians and vehicles moving at slow to moderate speeds. This sign series is capable of displaying full-color graphics, including logos and symbols.
The Signal-Tech Sign Control Software operates these signs; therefore, they can be controlled remotely from a central location. Set up a schedule or change the message with ease through a simple button click. The RGB Rebel Matrix Display is perfect for any application because it pairs function with beauty as it boasts easy-to-use software and a sleek, easy-to-install sign.
It is engineered for outdoor use, featuring water-resistant, textured display panels that enhance message readability in sunlight.
Product Specs
-
| 67578 |
32 x 64 px
10mm |
2½" LED Small
5¼" LED Large
11½" LED Extra Large |
| 1.2A |
144W
|
| 13½"h x 26"w x 2½"d |
| 20lbs. |
-
| 69806 |
32 x 96 px
10mm |
2½" LED Small
5¼" LED Large
11½" LED Extra Large |
| 1.7A |
204W
|
| 13½"h x 39"w x 2½"d |
| 25lbs. |
-
| 70573 |
32 x 128 px
10mm |
2½" LED Small
5¼" LED Large
11½" LED Extra Large |
| 2.2A |
264W
|
| 13½"h x 51½"w x 2½"d |
| 36lbs. |
-
| 70310 |
32 x 128 px
5mm |
1¼" LED Small
2¼" LED Large
5¾" LED Extra Large |
| 1.0A |
120W
|
| 7½"h x 26"w x 2½"d |
| 12lbs. |
-
| 70570 |
16 x 64 px
10mm |
2½" LED Small
5¼" LED Large |
| 0.7A |
84W
|
| 7½"h x 26"w x 2½"d |
| 16lbs |
-
| 70571 |
16 x 96 px
10mm |
2½" LED Small
5¼" LED Large |
| 1.0A |
120W
|
| 7½"h x 39"w x 2½"d |
| 17lbs. |
-
| 70572 |
16 x 128 px
10mm |
2½" LED Small
5¼" LED Large |
| 1.2A |
144W
|
| 7½"h x 51½"w x 2½"d |
| 21lbs. |
Typical Specs
| Visual |
| Pixel Density | 10mm pitch: 10,000 px/m²
5mm pitch: 40,000 px/m² |
| Estimated LED Lifetime | 100,000+ hours |
| Color Capability | 65,000 Gamma corrected colors |
| Viewing Angle | 170° (Horiz)
120° (Vert) |
| Brightness | 4,500nits |
| Functional |
| Integrated Mounting | Lift’n Shift backplate |
| Graphic Capability | Text, Graphic symbols, Logos, Basic Animation |
| Graphic Accessibility | Built in library with hand-crafted pixel perfect fonts and symbols |
| Control Software | Signal-Tech Sign Control Software
Or 3rd-party software using open API |
| Power Input | 100-240 VAC |
| Communications Options | Ethernet |
| Display Dimming | Manual Only |
| Environmental |
| Startup Temperature | 32ºF to 158ºF |
| Operating Temperature | 0°F to 158ºF |
| Cabinet (Housing) | NEMA 3R / IP55 enclosure w/ Lift'n Shift back |
| Warranty | 1 year |
Physical Construction
- Durable, corrosion-resistant aluminum cabinet
- Conformal coating protects electronics components from outside elements and humidity
- Integrated Lift’n Shift wall mount w/ 7/8” conduit knockouts and 1/4” mounting knockouts
Sign Control Software
- Compatible with Windows 10/Windows Server 2016 or higher
- Full-featured RGB Message Editor
- Compatible with RedStorm parking data (Sign Control and Reporting Software only)
- Uses a looping weekly playlist for easy scheduling
- Password-protected web interface with permission-based access to view and override sign status
System Requirements
RGB Rebel Series Smart Sign Display
- 100-240VAC input power connection at each Smart Sign
- A wired Ethernet network connection at each sign
- Static IP or DHCP Reservation (DHCP enabled by default)
Computer Requirements for Sign Control Software
- Server-grade PC with power backup running Windows 10 or Windows Server 2016 or higher
- Minimum requirements: 8GB RAM and 128 GB of hard drive space
- Network requirements: Ethernet, DHCP enabled
