Wholesale Manufacturer of Directional LED Signs & Signals

SAi Series LED Internally Illuminated Space Available Monument Signs with LED Count Displays

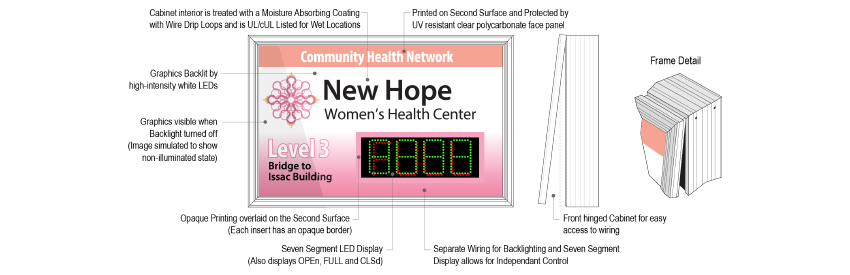

SAi Series Sign Image

Download Word Doc Download SAi Series Specifications

SAi Series is a seamless integration of our LED backlit signs and count displays. With separate power inputs, the backlit sections can be continuously illuminated or controlled by a day/night timer. The LED 4-digit count displays are then directed by the count module of a parking system to display the given number of available parking spaces. Each sign is custom designed and engineered to your specific requirements. Constructed with a rugged aluminum cabinet and hinged face(s) for easy installation. LED count displays are pre-wired. Available in single or double faced configurations. High-performance acrylic polyurethane enamel finish. High-impact acrylic face with an anti-glare coating allows for full graphic customization without sacrificing durability.

Technical Specifications

IlluminationBacklit with high-intensity white LEDs
MessageTranslucent or opaque colors
Custom font styles; full color symbols and graphics available
Message always visible; can be illuminated to enhance readability
GraphicsUV resistant, full color printed graphics and logo branding
LED Count DisplaySuper bright, direct-view LEDs with built-in automatic dimming
4-digit, seven-segment display Capable of displaying up to four numeric values as well as OPEN, FULL, and CLSd (Closed).
Available in any two monochromatic combinations of green, red, blue, amber or white LEDs
Visual opening 5 1116 x 16 ⅝ with 4 ½" high characters
Displays are pre-wired with drip loop construction
Count displays and backlight sections are given separate inputs to allow for backlight control
UL/cUL Listed for wet locations
Cabinet ConstructionExtruded aluminum frame with printed, anti-glare, high impact acrylic face
Precision mitered corners with corner keys
Interior surfaces coated with moisture absorbing material
Hinged face for interior cabinet access
Available in single or double face configurations
Cabinet DepthSingle Faced: 5 ½" deep with one hinged face
Double Faced: 7 ½" deep with two hinged faces
Cabinet FinishHigh performance acrylic polyurethane enamel finish. Standard color:
Duranodic Bronze, semi-gloss. Custom colors and finishes available
Temperature and Humidity RatingsThe Cabinet and sign components shall operate in the following temperature and humidity conditions:
  • Operational & storage temperature range: -40°F to +165°F
  • Humidity range: 0% to 95% (non-condensing)
CommunicationRS485, RS232 or Ethernet communication (using compatible parking system)
Warranty2 Years
MountingWall, double post, ceiling, projection
Parking System CompatibilityThe count displays are compatible with the Signal-Tech RedStorm™ Parking Guidance System and these 3rd-party parking systems:
3M | Federal APD
All Traffic Solutions
APS (Access Professional Systems)
Carlo Gavazzi
Dimonoff Inc
Eco Lighting Solutions
EnSight Technologies
Genetec AutoVu
HUB Parking
Scheidt & Bachmann
T2 Systems
