Download Word Doc Download Space Available Specifications

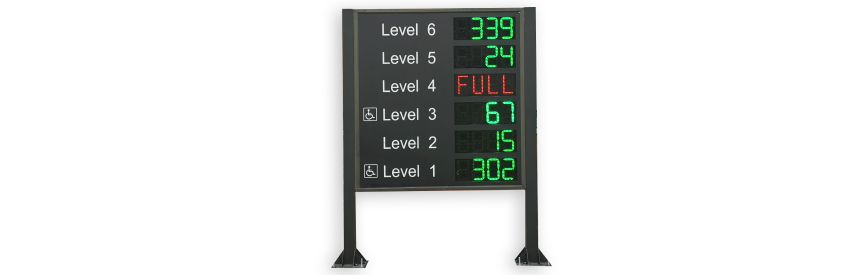

Space Available Signs are designed to connect with the count module of a parking count system and display the number of available parking spaces on the LED 4-digit count displays. Each sign is custom designed and engineered to your specific requirements. Constructed with a rugged aluminum cabinet and hinged face(s) for easy installation. LED count displays are pre-wired. Available in single or double faced configurations. High-performance acrylic polyurethane enamel finish. Available with full color graphics and logo branding.

Technical Specifications

Illumination	Super bright, direct-view LEDs with built-in automatic dimming.
LED Count Display	4-digit, seven-segment display Capable of displaying up to four numeric values as well as OPEN, FULL, and CLSd (Closed). Available in any two monochromatic combinations of green, red, blue, amber or white LEDs Available in two standard sizes: Visual opening of 6-1/8”h x 17-1/8”w, with 4 ½ “ high characters Visual opening of 8-1/8”h x 25-1/8”w, with 7 ½” or 6” high characters Custom sizes available Displays are pre-wired with drip loop construction UL/cUL Listed for wet locations 120-277VAC or 12-24VDC
Cabinet Construction	Extruded aluminum frame with a routed aluminum face panel Precision mitered corners with corner keys Interior surfaces coated with moisture absorbing material Hinged face for interior cabinet access Available in single or double face configurations
Cabinet Depth	Single Faced: 5½” deep with one hinged face Double Faced: 7½” deep with two hinged faces
Cabinet Finish	High performance acrylic polyurethane enamel finish. Standard color: Duranodic Bronze, semi-gloss. Custom colors and finishes available
Temperature and Humidity Ratings	The Cabinet and sign components shall operate in the following temperature and humidity conditions: Operational & storage temperature range: -40°F to +165°F Humidity range: 0% to 95% (non-condensing)
Graphics	Commercial grade reflective vinyl, full color printed graphics and logo branding, LED backlit full color graphics
Control	Communication with count module of a parking count system
Warranty	2 Years
Mounting	Wall, double post, ceiling, projection
Parking System Compatibility	Click here to view the full list.

Individual 4-digit LED Count Display Signs

Overall Sign Size (H" x W" x D")	7”h x 18”w x 2.5”d	9”h x 26”w x 2.5”d
	Custom sizes available
Visual Opening	6-1/8”h x 17-1/8”w	8-1/8”h x 25-1/8”w
Character Height	4 ½”	7 ½” and 6”
Illumination Source	Super bright direct-view LEDs with built-in automatic dimming
Electrical	UL/cUL Listed for wet locations 120-277VAC or 12-24VDC
Messages	4-digit, seven-segment display capable of displaying up to four numeric values as well as OPEN, FULL and CLSd(Closed). Available in any two monochromatic combinations of green, red, blue, amber or white LEDs
Control	Communication with count module of a parking count system
Cabinet Construction	2.5" deep extruded aluminum frame 1/8" thick, impact resistant, smoked-tinted polycarbonate face Standard finish: Duranodic Bronze. Custom paint colors available.
